Solutions Built Around Your Application
Custom RF solutions built around your interface, mechanical and performance requirements.
Key Capabilities
- Interface modification
- Mechanical customization
- Material & plating options

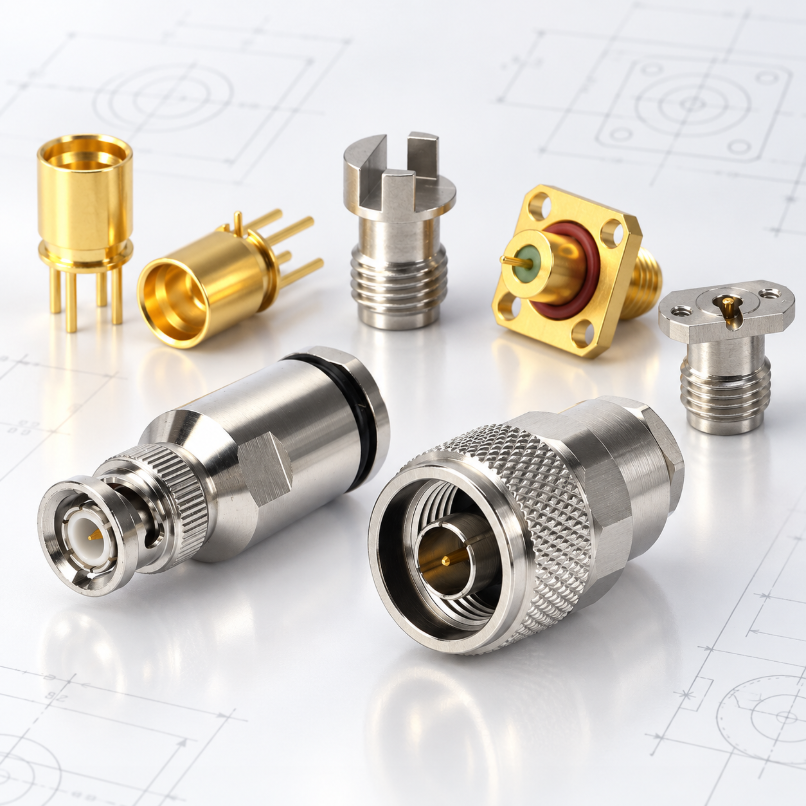

Custom RF Connectors
Adapt interfaces, dimensions and mounting structures to your application.
Key Capabilities
- Connector & cable matching
- Custom lengths
- Phase-matched options

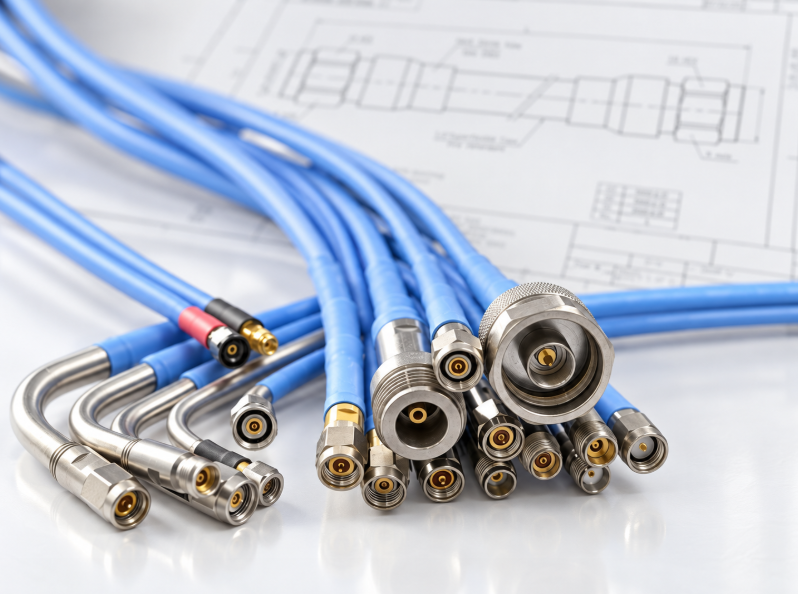

Custom Cable Assemblies
Configure connectors, cable types and lengths for your RF system.
Key Capabilities
- VSWR verification
- Insertion loss measurement
- Electrical performance validation

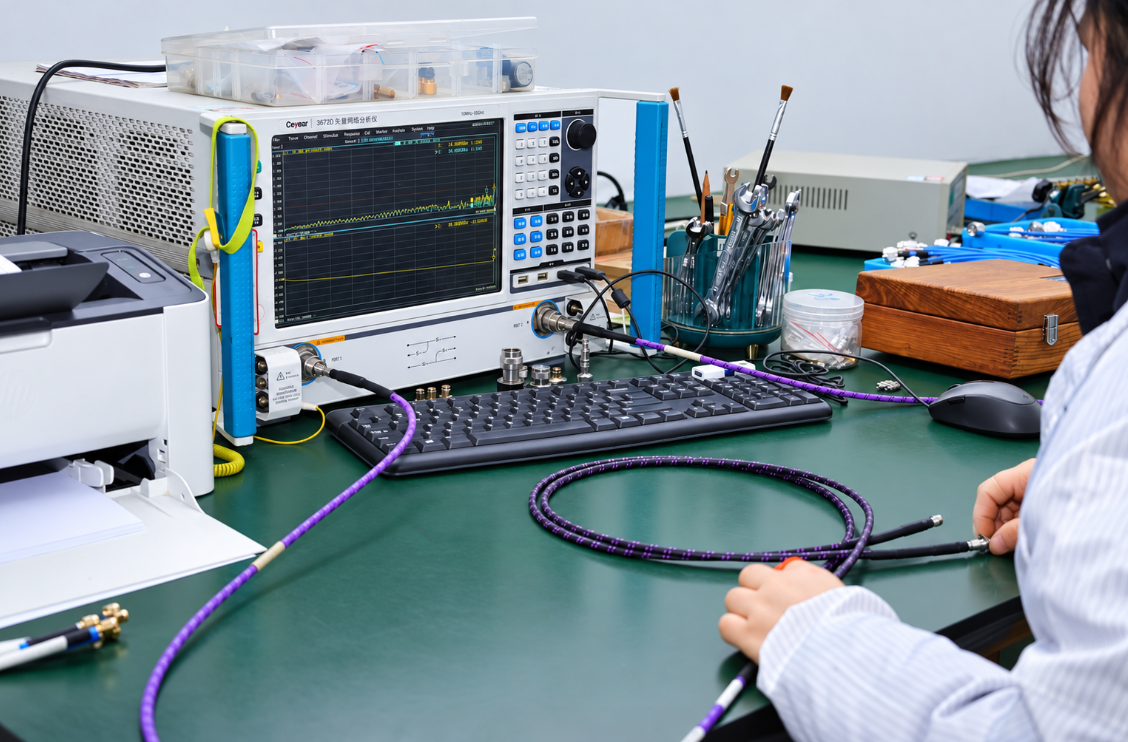

RF Performance Verification
Verify RF performance against your target specifications.
What We Customize
Engineering support for non-standard RF and microwave requirements.
Custom Connectors
Interface types, mating structures and special form factors.
Cable Assemblies
Cable types, lengths, routing and connector combinations.
Mechanical Modifications
Mounting, shell structure, flange, size and space constraints.
RF Performance Optimization
VSWR, return loss, insertion loss and bandwidth improvement.
Phase-Matched Solutions
Phase consistency for high-frequency and multi-channel systems.
Application-Specific RF Interconnects
Connector and cable configurations built around your system.
Custom RF Solutions.
Proven by Engineering.
See how LWMC RF turns complex RF and microwave requirements into verified, manufacturable solutions.

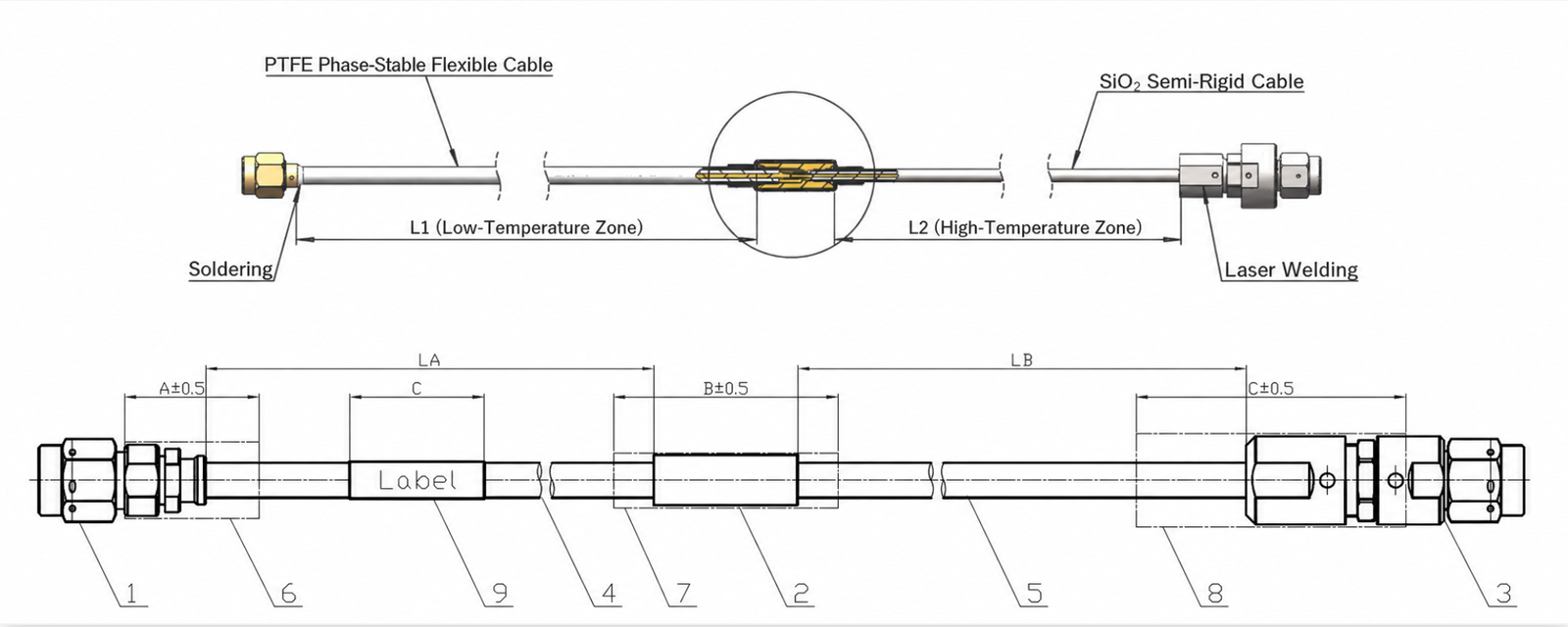

38 GHz High-Temperature-to-Ambient Cable Assembly Redesign
Challenge
The original design used two separate cable assemblies for high-temperature and ambient zones, connected through intermediate adapters. This caused high VSWR and excessive insertion loss.
Engineering Solution
LWMC RF removed the intermediate connector pair and developed a direct coaxial transition, while optimizing the connector structures at both the high-temperature and ambient ends.
Verified Result
A simplified RF path reduced discontinuities and achieved the required high-frequency performance.

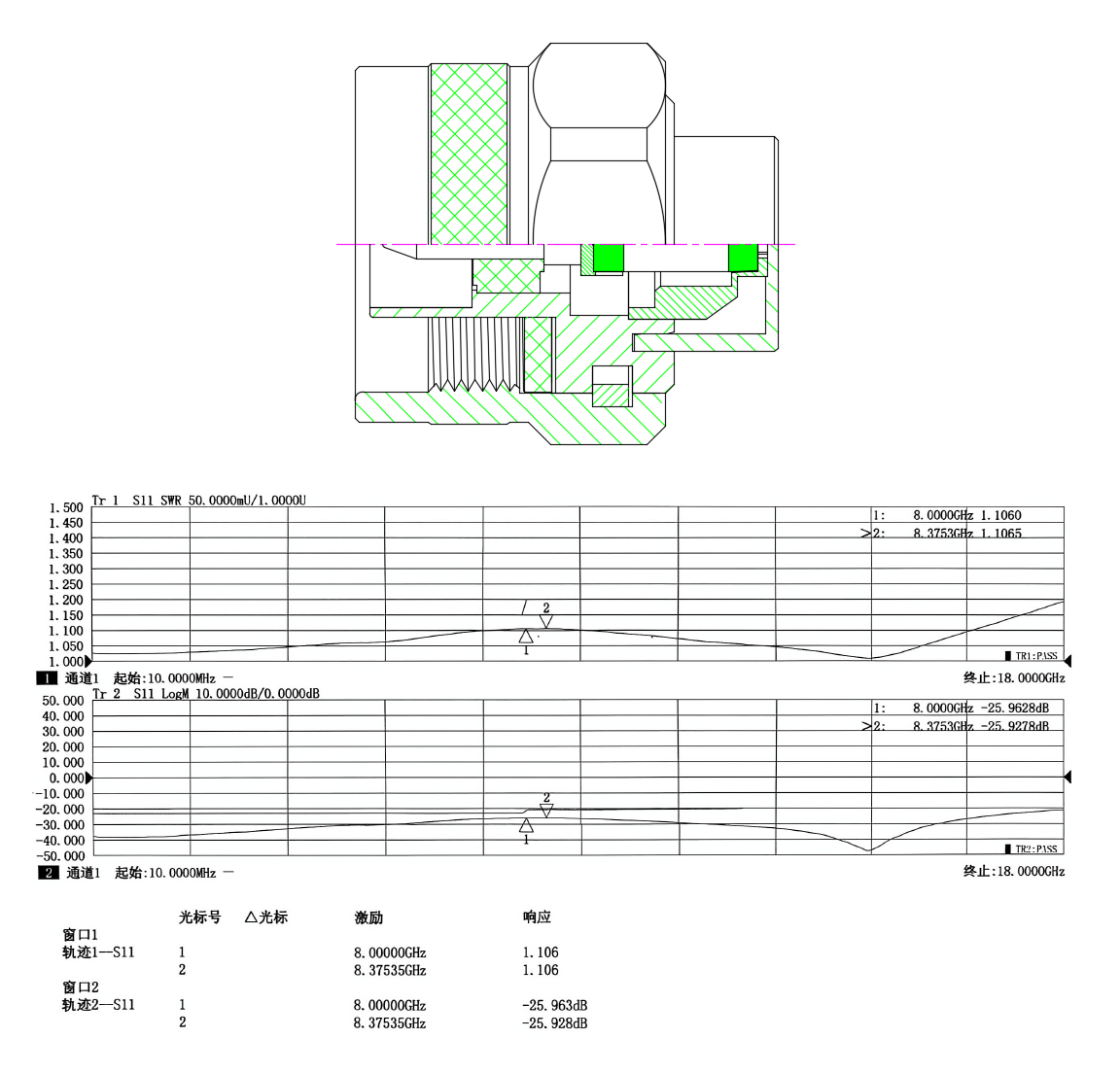

N-Type 5W Load Extended from 8.5 GHz to 18 GHz
Challenge
The original N-Type 5W termination was designed for operation up to 8.5 GHz. The customer required higher-frequency operation while maintaining strong return-loss performance.
Engineering Solution
LWMC RF optimized the internal coaxial transition and impedance structure to reduce high-frequency discontinuities.
Verified Result
The optimized design maintained S11 below -20 dB across the required range up to 18 GHz.

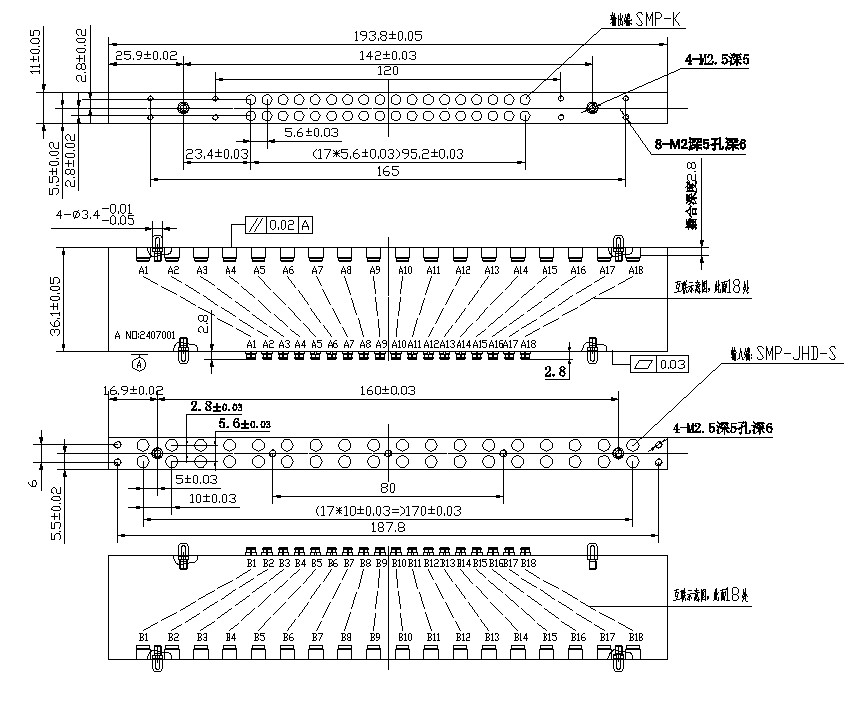

33–37 GHz Ka-Band 36-Channel Aperture Conversion Module
Challenge
The customer required a 36-channel interface to transition from a 10 mm input pitch to a 6.5 mm output pitch within a compact rigid housing.
Engineering Solution
LWMC RF developed a 36-channel SMP interconnect architecture using phase-stable coaxial cable assemblies and a precision mechanical housing.
Verified Result
The completed module achieved the required aperture conversion while maintaining consistent RF performance across all 36 channels.
From Requirement to Verified Solution
Share Your Requirements
Drawing, specification or application requirements.
Engineering Review
Electrical and mechanical feasibility evaluation.
Prototype & Verification
Prototype development and RF performance testing.
Production
Approved design transferred to production.
Have a Non-Standard RF Requirement?
Send us your drawing, specification or application details. Our engineering team will review your project and propose a suitable solution.
