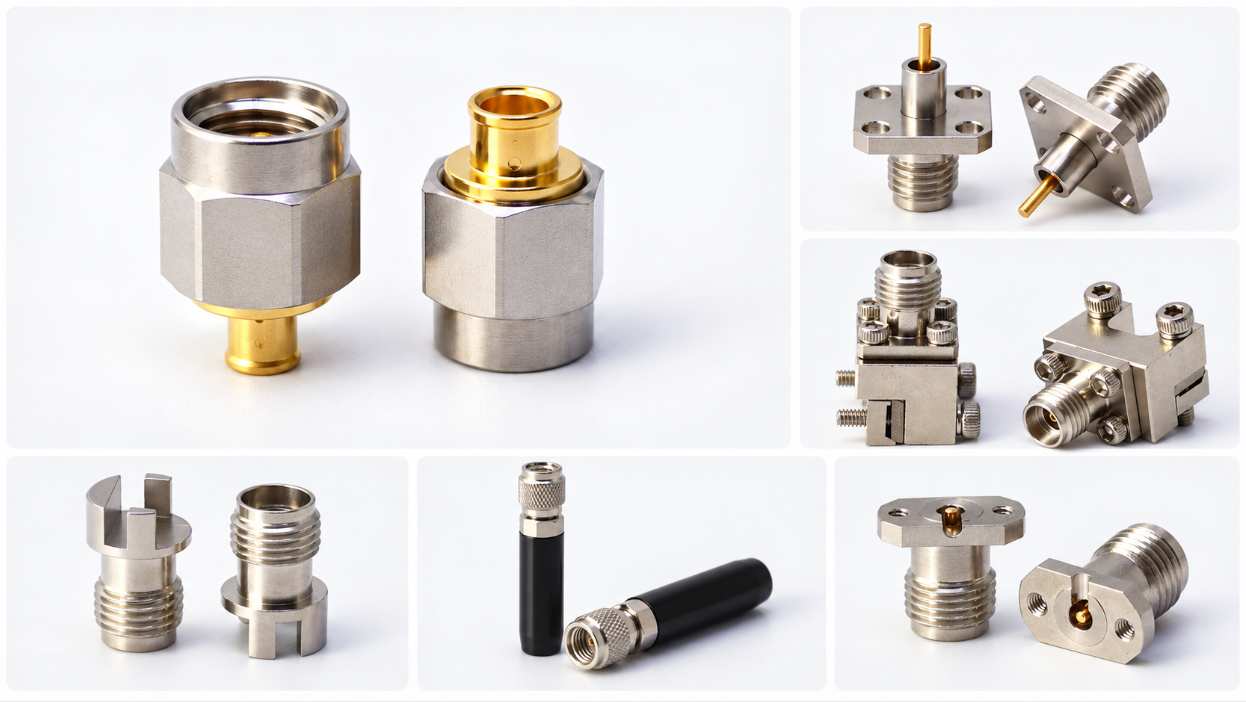

2.92mm Connectors
Precision 50 Ω Connectors for Applications up to 40 GHz
2.92mm (K) connectors are precision 50 Ω coaxial connectors designed for high-frequency applications up to 40 GHz. They offer reliable RF performance and are widely used in test equipment, microwave systems and high-frequency communications.
LWMC RF supplies standard and custom 2.92mm connectors to meet different mounting, cable and RF performance requirements.
Up to 40 GHz
Designed for high-frequency and microwave applications.
Precision Interface
50 Ω interface for reliable RF performance.
Flexible Configurations
Options for cable, PCB, panel and bulkhead mounting.
High-Frequency Applications
Suitable for RF testing, communications and microwave systems.
2.92mm Product Options
Flexible configurations for cable, PCB, panel and custom RF applications.
LWMC RF offers standard and custom 2.92mm connector configurations for different cable, mounting and high-frequency application requirements.

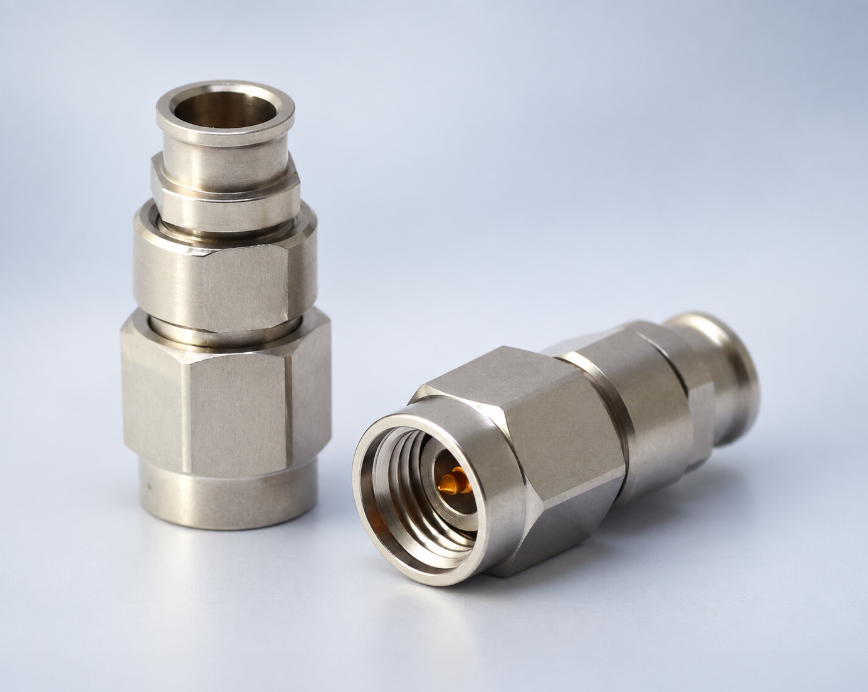

Cable Mount 2.92mm
Straight and right-angle configurations for flexible, semi-rigid and other RF cable applications.

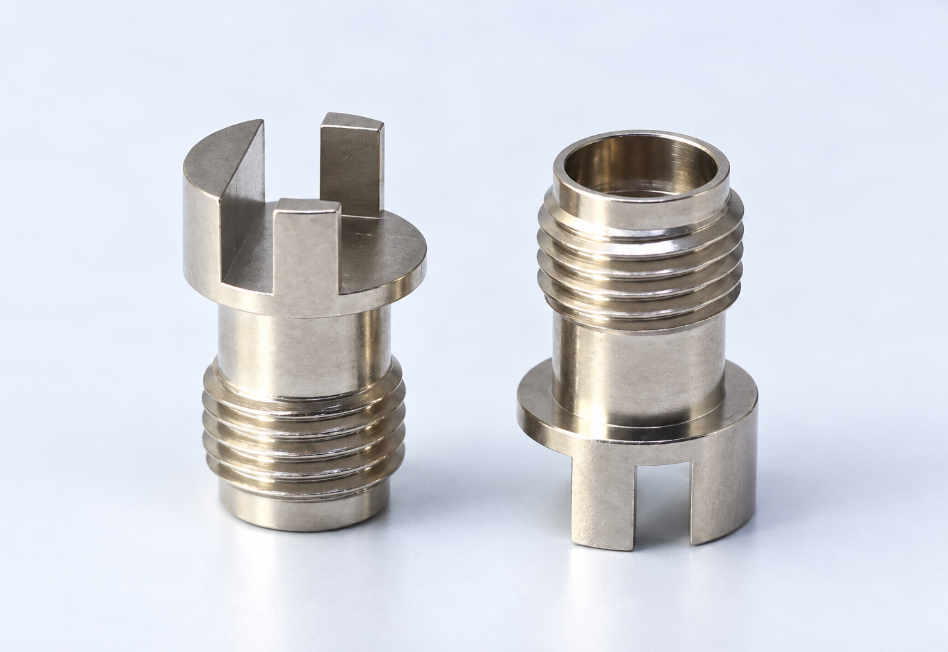

PCB & Edge Mount 2.92mm
Board-mount and end-launch configurations for RF PCB and coaxial transitions.

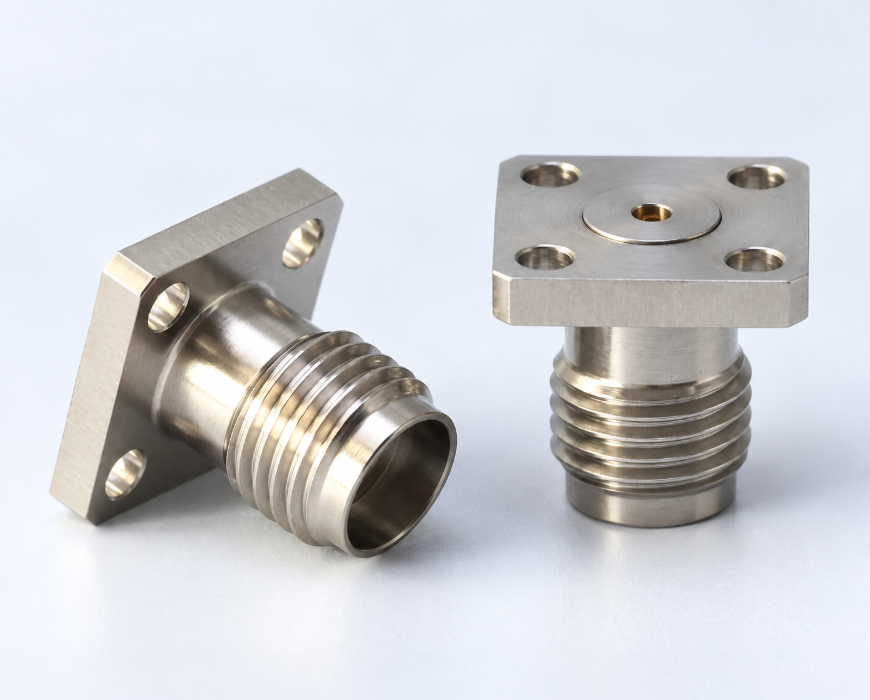

Panel & Bulkhead 2.92mm
Panel, bulkhead and enclosure-mount configurations for RF equipment and systems.
Custom 2.92mm Solutions
Project-specific configurations for mechanical dimensions, mounting, cable interfaces and RF performance requirements.
Looking for More 2.92mm Options?
We offer standard and custom 2.92mm configurations for different cable types, mounting styles and RF performance requirements. For specific interfaces, structures or performance targets, our team can help recommend a suitable solution.
2.92mm Technical & Configuration Overview
Common 2.92mm connector characteristics and configuration options for high-frequency applications. Final specifications depend on the selected configuration and project requirements.
General Specifications
| Interface Type | 2.92mm (K) |
| Nominal Impedance | 50 Ω |
| Coupling Mechanism | Threaded |
| Connector Gender | Plug / Jack |
| Orientation | Straight / Right-Angle |
| Mounting Options | Cable / PCB / Panel / Bulkhead |
| Termination Options | Solder / Clamp / PCB / Custom |
2.92mm connectors are commonly designed for applications up to 40 GHz. VSWR, materials and other specifications vary by configuration. Contact us for model-specific specifications.
Configuration & Customization Options
Cable Interface Options
Options for different RF cable types and termination methods.
Mounting Styles
Cable, PCB, panel, bulkhead and project-specific mounting options.
Mechanical Dimensions
Custom dimensions and mechanical features for specific installation requirements.
Materials & Plating
Material and plating options based on application and performance requirements.
RF Performance Requirements
RF performance optimization based on frequency and project requirements.
Project-Specific Customization
Custom connector designs and modifications for specific applications.
Typical Applications
Telecommunications
Base stations, antennas and wireless communication systems.
Test & Measurement
RF test equipment, network analyzers and laboratory systems.
Aerospace & Defense
RF interconnections for demanding aerospace and defense equipment.
Industrial & Microwave
Amplifiers, filters, RF modules and industrial electronic equipment.
Why Choose LWMC RF
-
Precision Manufacturing Controlled machining, assembly and inspection processes.
-
RF Performance Verification Performance verification based on project requirements.
-
Custom Engineering Support Support for mechanical dimensions, mounting styles and RF requirements.
-
Prototype to Production Support from initial samples through repeat and volume orders.
2.92mm Connectors FAQ
Common questions about 2.92mm connector performance, compatibility and customization.
What frequency range do 2.92mm connectors support?
What is the difference between 2.92mm and SMA connectors?
Are 2.92mm connectors compatible with SMA and 3.5mm interfaces?
What types of 2.92mm connectors are available?
Can LWMC RF provide custom 2.92mm connectors and cable assemblies?
Discuss Your 2.92mm Requirements
Looking for a standard or custom 2.92mm connector? Share your connector type, mounting style, cable or PCB requirements, quantity and target RF performance. Our team can help evaluate a suitable solution for your project.
