BNC Connectors
Quick-Connect Solutions for RF & Test Applications
BNC connectors feature a convenient bayonet coupling design for fast and reliable RF connections. They are widely used in test equipment, communication systems, instrumentation, and industrial applications.
LWMC RF offers standard and custom BNC configurations for different cable, mounting, and application requirements.
50 Ω & 75 Ω Options
Available for RF, video and instrumentation applications.
Bayonet Coupling
Quick connect and disconnect without threaded fastening.
Flexible Configurations
Cable, PCB, panel, bulkhead and adapter options.
Custom Engineering
Support for project-specific mechanical and RF requirements.

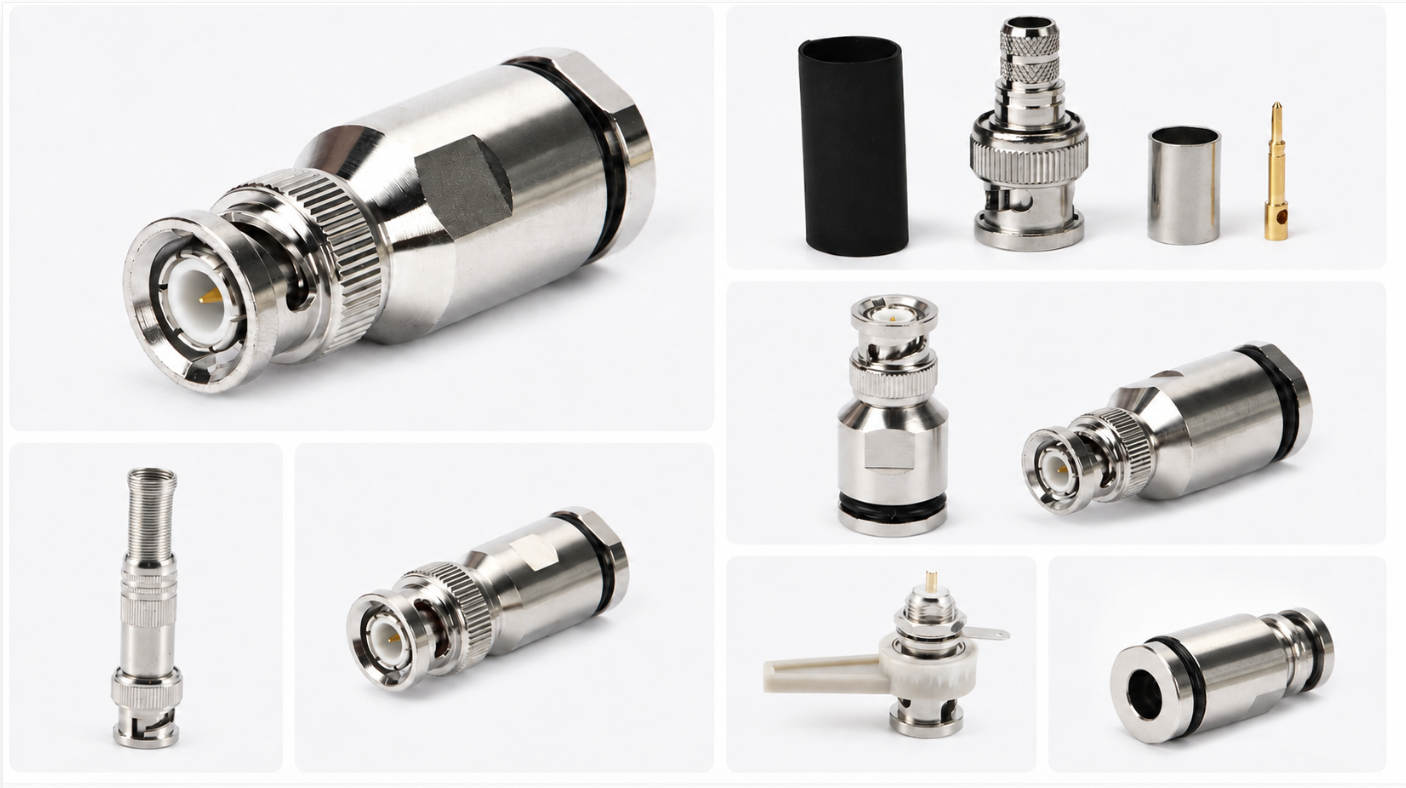

BNC Product Options
Flexible BNC configurations for cable, PCB, panel and custom RF applications.
LWMC RF supports standard and custom BNC configurations for different cable types, mounting styles and application requirements.

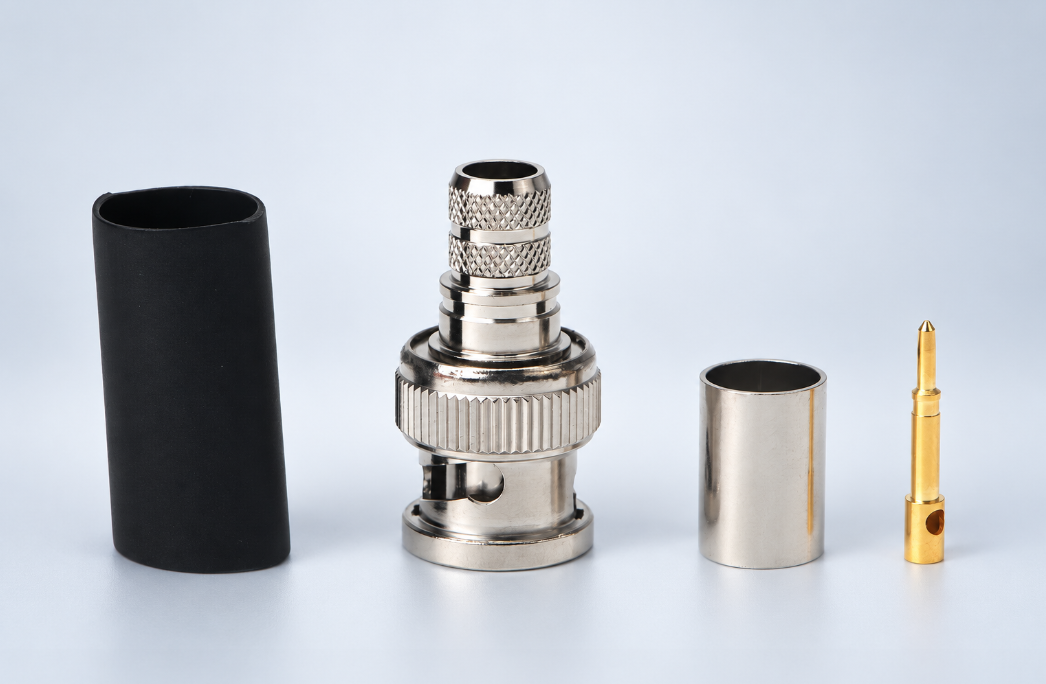

Cable Mount BNC
Straight and right-angle configurations for flexible, semi-rigid and other RF cable applications.

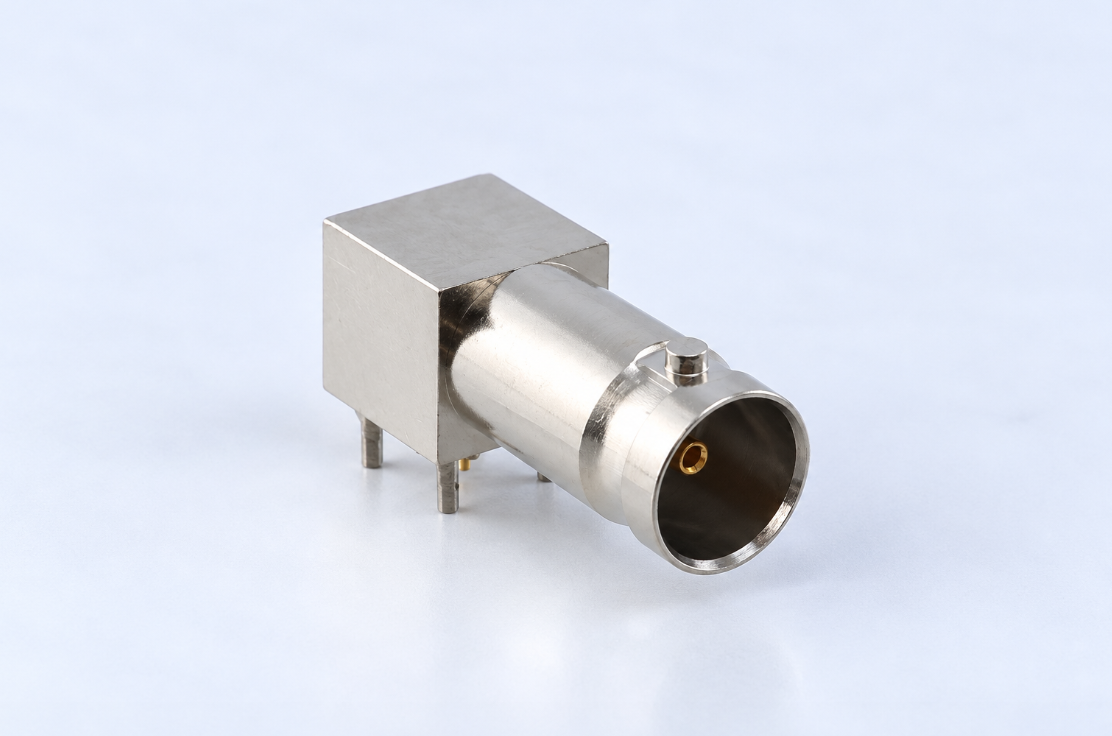

PCB & Edge Mount BNC
Board-mount and end-launch configurations for RF PCB and coaxial transitions.

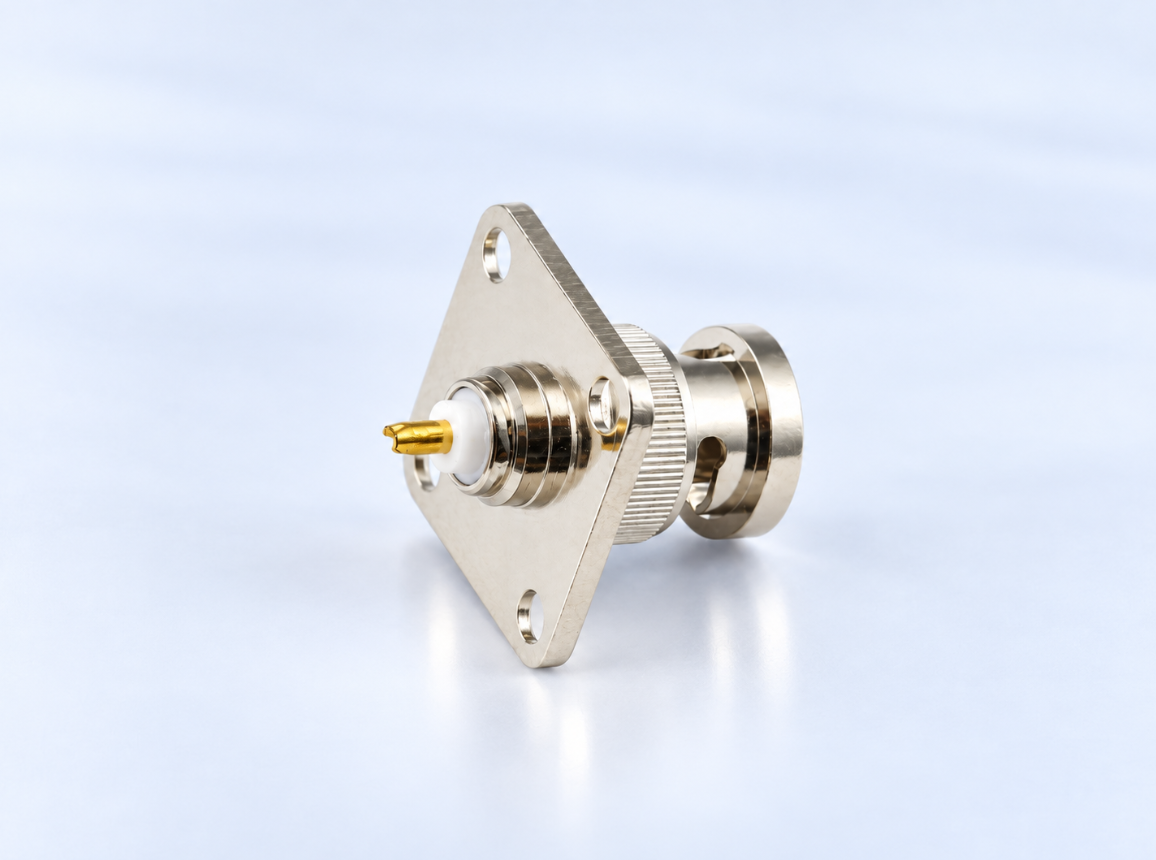

Panel & Bulkhead BNC
Panel, bulkhead and enclosure-mount configurations for RF equipment and systems.
Custom BNC Solutions
Project-specific configurations for mechanical dimensions, mounting, cable interfaces and RF requirements.
Looking for More BNC Options?
We offer standard and custom BNC configurations for different cable types, mounting styles and RF requirements. For specific interfaces, structures or performance targets, our team can help recommend a suitable solution.
BNC Technical & Configuration Overview
Common BNC characteristics and configuration options for RF, video, and instrumentation applications. Final specifications depend on the selected configuration and project requirements.
General Specifications
| Interface Type | BNC |
|---|---|
| Nominal Impedance | 50 Ω / 75 Ω |
| Coupling Mechanism | Bayonet |
| Connector Gender | Plug / Jack |
| Orientation | Straight / Right-Angle |
| Mounting Options | Cable / PCB / Panel / Bulkhead |
| Termination Options | Crimp / Solder / PCB / Custom |
Frequency range, VSWR, materials, and other electrical specifications vary by configuration. Contact our engineering team for model-specific data sheets.
Configuration & Customization Options
Cable Interface Options
Extensive support for various RF cable types and precise termination methods.
Mounting Styles
Versatile mounting including cable, PCB, panel, bulkhead, and project-specific designs.
Impedance Options
Optimized 50 Ω and 75 Ω configurations tailored for communication and broadcast video.
Materials & Plating
Premium brass, stainless steel, and specialized plating for enhanced durability and conductivity.
RF Performance Requirements
Customizable VSWR and insertion loss parameters to meet stringent system specifications.
Project-Specific Customization
Collaborative engineering support for bespoke connector designs and rapid prototyping.
Typical Applications
Communication Systems
Radio, antenna and communication equipment.
Test & Measurement
RF test equipment, instruments and laboratory systems.
Broadcast & Video
Video equipment, monitoring systems and signal distribution.
Industrial Electronics
Measurement, control and industrial RF equipment.
Why Choose LWMC RF
-
Precision Manufacturing Controlled machining, assembly and inspection processes.
-
RF Performance Verification Performance verification based on project requirements.
-
Custom Engineering Support Support for mechanical dimensions, mounting styles and RF requirements.
-
Prototype to Production Support from initial samples through repeat and volume orders.
Frequently Asked Questions
Find answers to the most common questions about our BNC connectors, custom capabilities, and specifications.
What is a BNC connector?
What is the difference between 50 Ω and 75 Ω BNC connectors?
What frequency range do BNC connectors support?
Can LWMC RF provide custom BNC connectors?
How can I request a quote for BNC connectors?
Discuss Your BNC Requirements
Looking for a standard or custom BNC connector? Share your connector type, mounting style, cable or PCB requirement, quantity and target RF performance. Our team can help evaluate a suitable solution for your project.
