1.85mm Connectors
Precision 67 GHz RF Connectors for Millimeter-Wave Applications
1.85mm connectors are precision 50 Ω coaxial connectors designed for high-frequency applications up to 67 GHz. They provide excellent impedance control, low VSWR and reliable signal transmission in demanding microwave and millimeter-wave systems.
LWMC RF supplies standard and custom 1.85mm connector solutions for test and measurement equipment, RF modules, PCB integration and advanced communication systems.
67 GHz Performance
Designed for precision RF signal transmission up to 67 GHz.
Precision 50 Ω Interface
Engineered for consistent impedance and minimal signal reflection.
Reliable RF Performance
Low VSWR and repeatable connections for demanding applications.
Flexible Configurations
Options for PCB mounting, cable termination, flange mounting and custom designs.

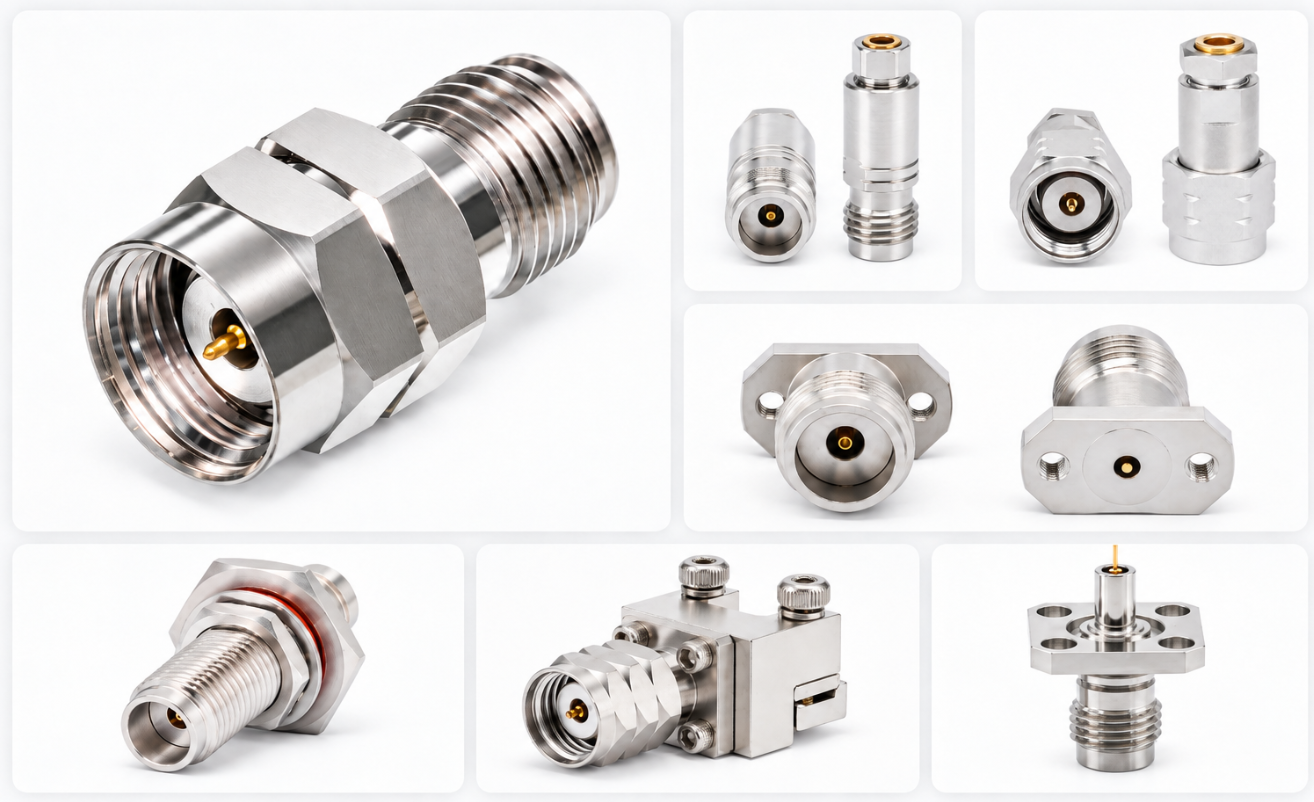

1.85mm Product Options
Precision configurations for cable, PCB, flange mounting and custom RF applications.
LWMC RF offers standard and custom 1.85mm connector configurations for precision microwave and millimeter-wave systems. Explore our commonly supplied options below.

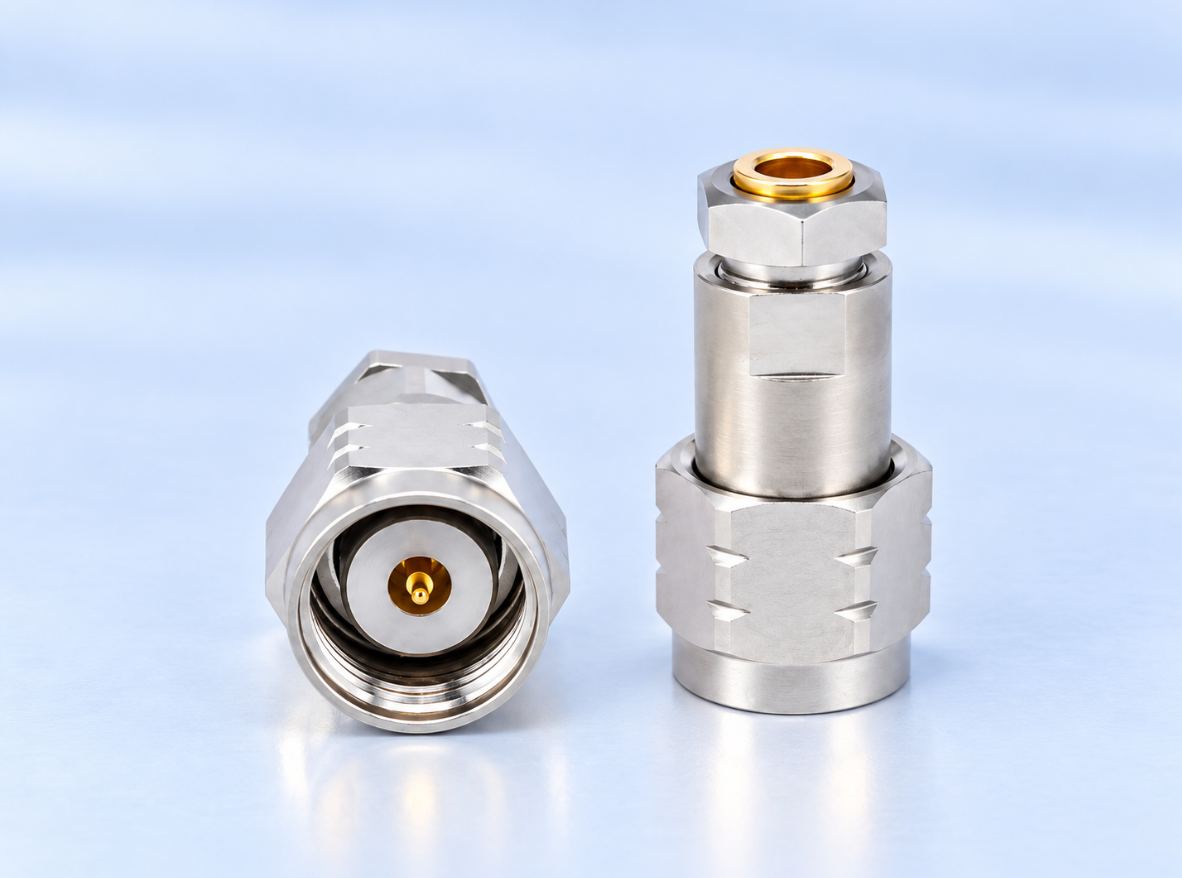

Cable Mount 1.85mm
Straight and right-angle configurations for precision RF cable assemblies and high-frequency connections.

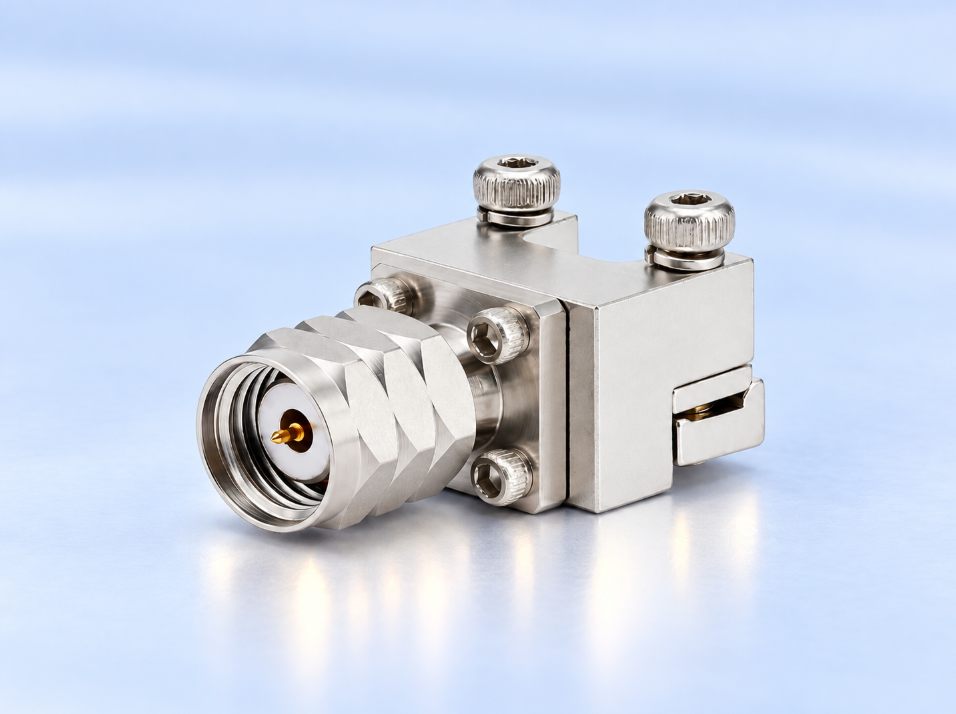

PCB Mount 1.85mm
Compact board-mount connectors for RF modules, test fixtures and high-frequency PCB applications.

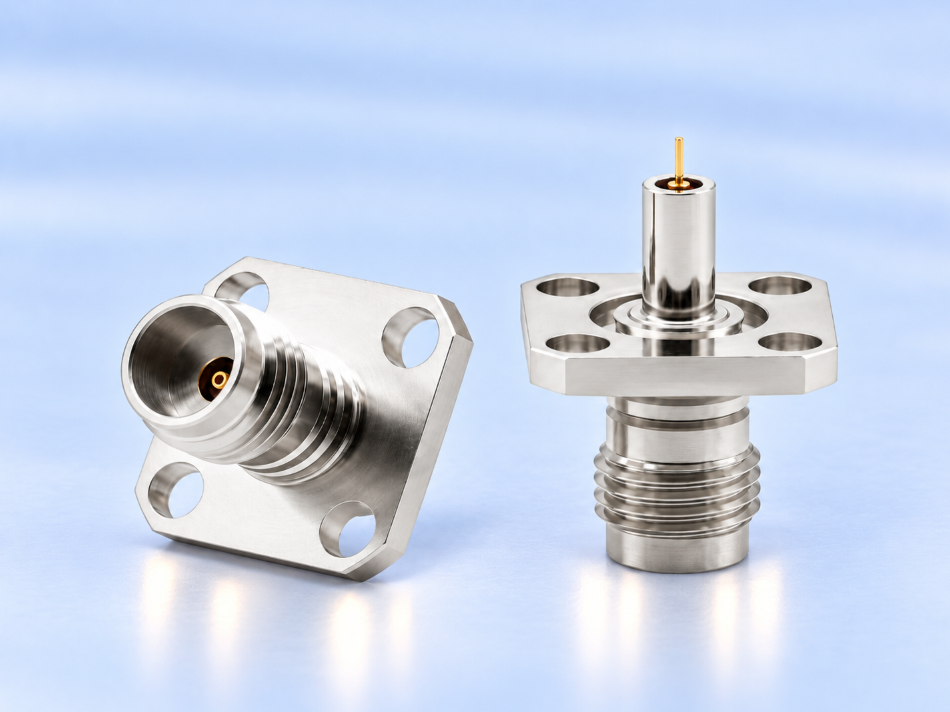

Flange Mount 1.85mm
Precision flange-mount connectors for secure integration into RF modules, test equipment and microwave systems.
Custom 1.85mm Solutions
Custom connector configurations tailored to specific mounting, mechanical and electrical requirements.
Looking for More 1.85mm Options?
Share your drawings or technical requirements with us. Our team will help you identify a suitable standard or custom 1.85mm connector solution.
1.85mm Technical & Configuration Overview
Technical specifications and customization options for precision 1.85mm connectors. Final performance depends on the selected configuration.
General Specifications
| Interface Type | 1.85mm Precision |
| Nominal Impedance | 50 Ω |
| Coupling Mechanism | Threaded |
| Connector Gender | Male / Female |
| Orientation | Straight / Right-Angle |
| Mounting Options | Cable / PCB / Panel / Flange |
| Termination Options | Solder / PCB / Custom |
Typical frequency range: up to 67 GHz. VSWR, insertion loss and other specifications vary by model and configuration. Contact us for details.
Configuration & Customization Options
Cable Interface Options
Compatible flexible and semi-rigid RF cable terminations.
Mounting Styles
Cable, PCB, panel and flange mounting options.
Mechanical Dimensions
Custom dimensions for specific installation requirements.
Materials & Plating
Material and plating options for different applications.
RF Performance Requirements
Configuration-dependent options for VSWR, insertion loss and high-frequency performance.
Project-Specific Customization
Custom 1.85mm designs based on drawings and technical requirements.
Typical Applications
Telecommunications
Precision RF connections for high-frequency communication and millimeter-wave systems.
Test & Measurement
Precision interconnections for network analyzers, RF test instruments and applications up to 67 GHz.
Aerospace & Defense
High-frequency coaxial connections for aerospace, defense and advanced RF systems.
RF Modules & Microwave
Compact, high-performance connections for RF modules, microwave assemblies and precision test fixtures.
Why Choose LWMC RF
-
Precision Manufacturing Controlled machining, assembly and inspection for precision RF connectors.
-
RF Performance Verification RF performance testing and verification based on product specifications and project requirements.
-
Custom Engineering Support Support for custom mounting, mechanical dimensions and RF performance requirements.
-
Prototype to Production Flexible support from initial prototypes to repeat orders and volume production.
1.85mm Connectors FAQ
Common questions about 1.85mm connector performance, compatibility, applications and customization.
What is the difference between 1.85mm and 2.4mm connectors?
What frequency range do 1.85mm connectors support?
Are 1.85mm connectors compatible with 2.4mm and SMA connectors?
What are the typical applications of 1.85mm connectors?
Can LWMC RF provide custom 1.85mm connectors and cable assemblies?
Discuss Your 1.85mm Requirements
Looking for standard or custom 1.85mm connectors? Share your mounting style, cable or PCB requirements, quantity and target RF performance. Our team will help you identify a suitable solution.
