2.4mm Connectors
Precision 50 GHz RF Connectors for Millimeter-Wave Applications
2.4mm connectors are precision 50 Ω coaxial connectors designed for high-frequency applications up to 50 GHz. They offer excellent impedance control, low VSWR and reliable performance in demanding RF and microwave systems.
LWMC RF supplies standard and custom 2.4mm connector solutions for test equipment, RF modules, cable assemblies and advanced communication systems.
50 GHz Performance
Designed for precision RF signal transmission up to 50 GHz.
Precision 50 Ω Interface
Engineered for consistent impedance and low signal reflection.
Reliable RF Performance
Low VSWR and repeatable connections for demanding applications.
Flexible Configurations
Options for PCB mounting, cable termination and custom designs.

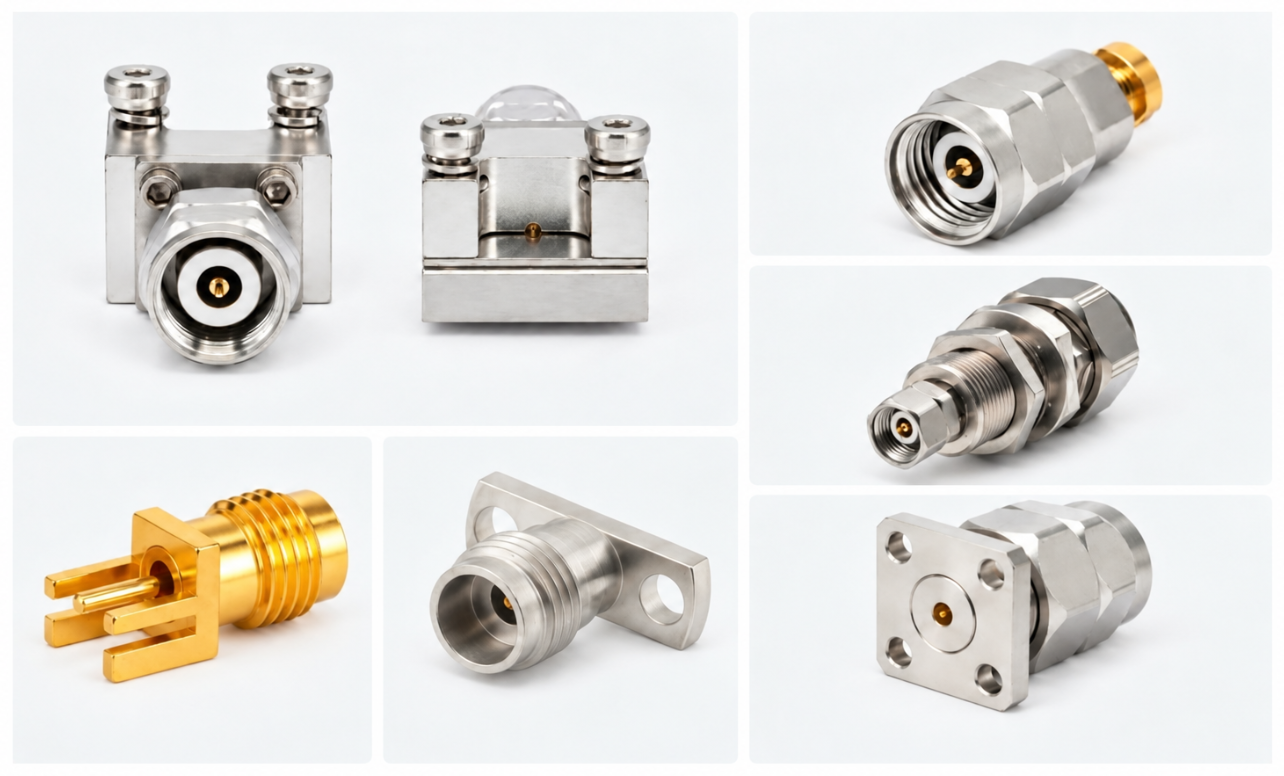

2.4mm Product Options
Precision configurations for cable, PCB, panel and custom RF applications.
LWMC RF offers standard and custom 2.4mm connector configurations for precision microwave and millimeter-wave systems. Explore our commonly supplied options below.

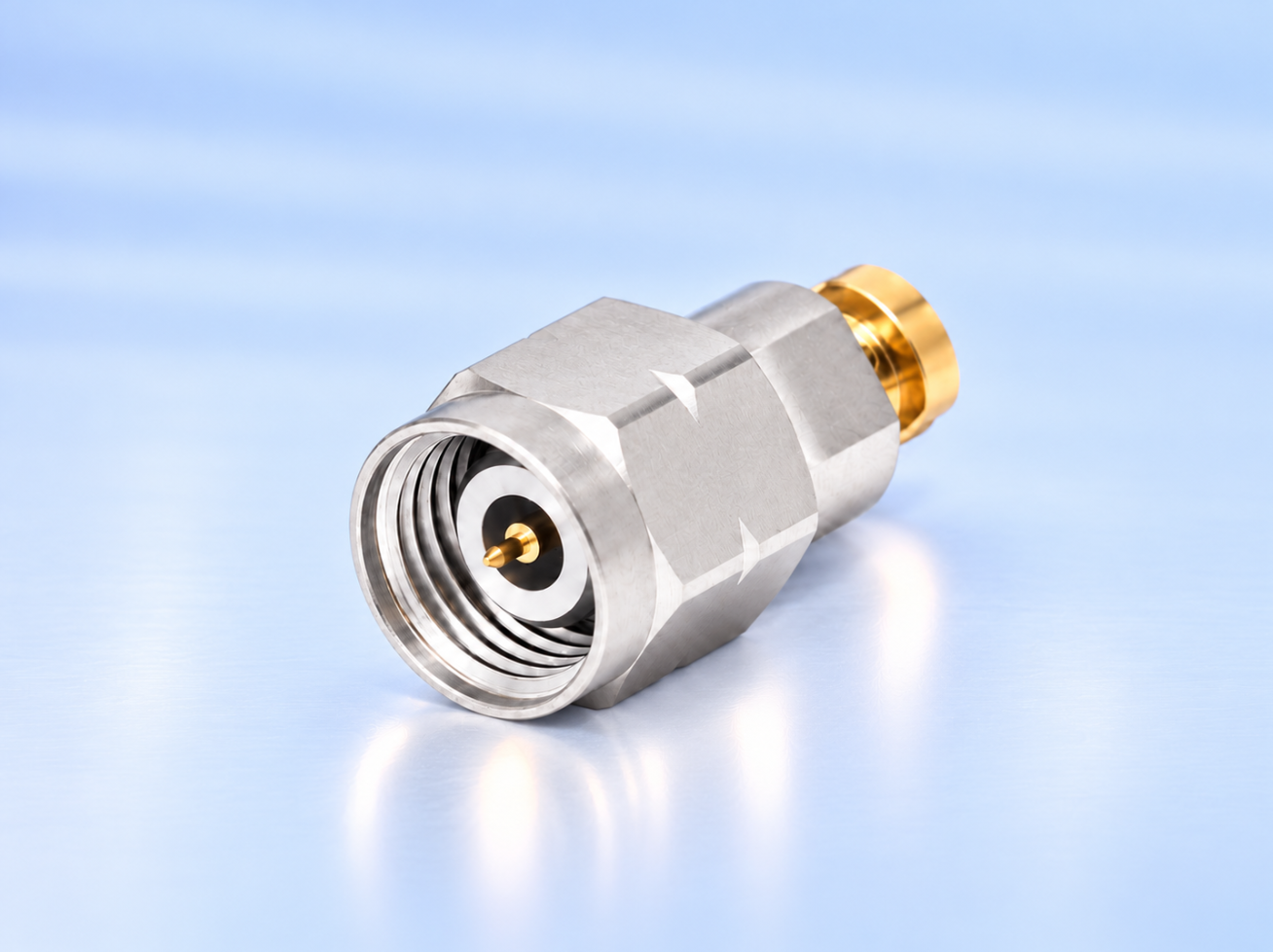

Cable Mount 2.4mm
Straight and right-angle options for precision RF cable assemblies.

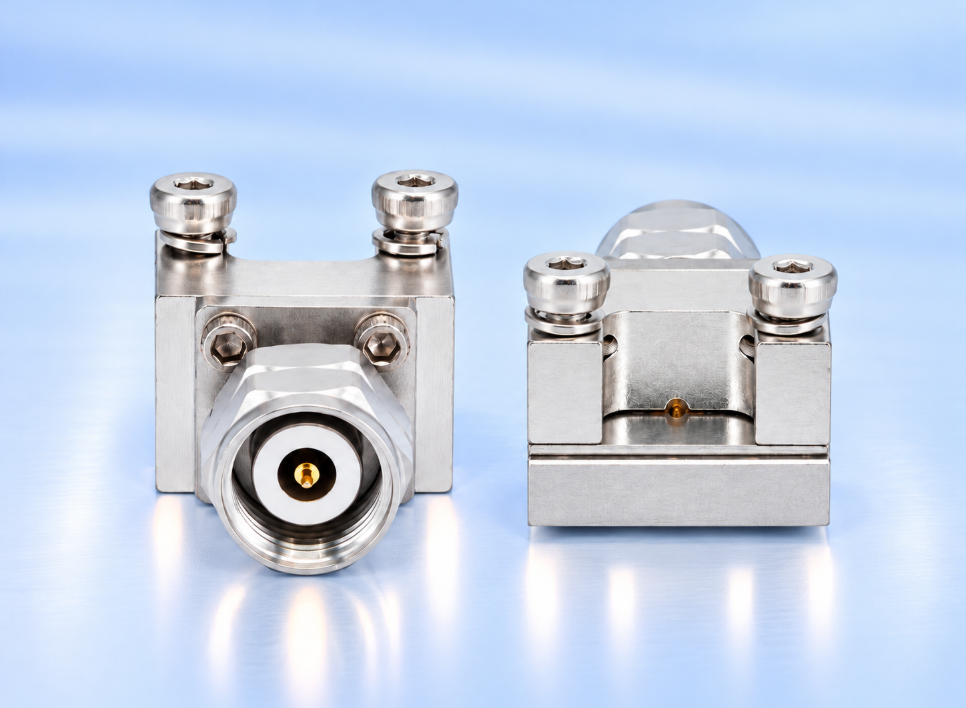

PCB Mount 2.4mm
Compact board-mount configurations for precision RF modules, test fixtures and PCB assemblies.

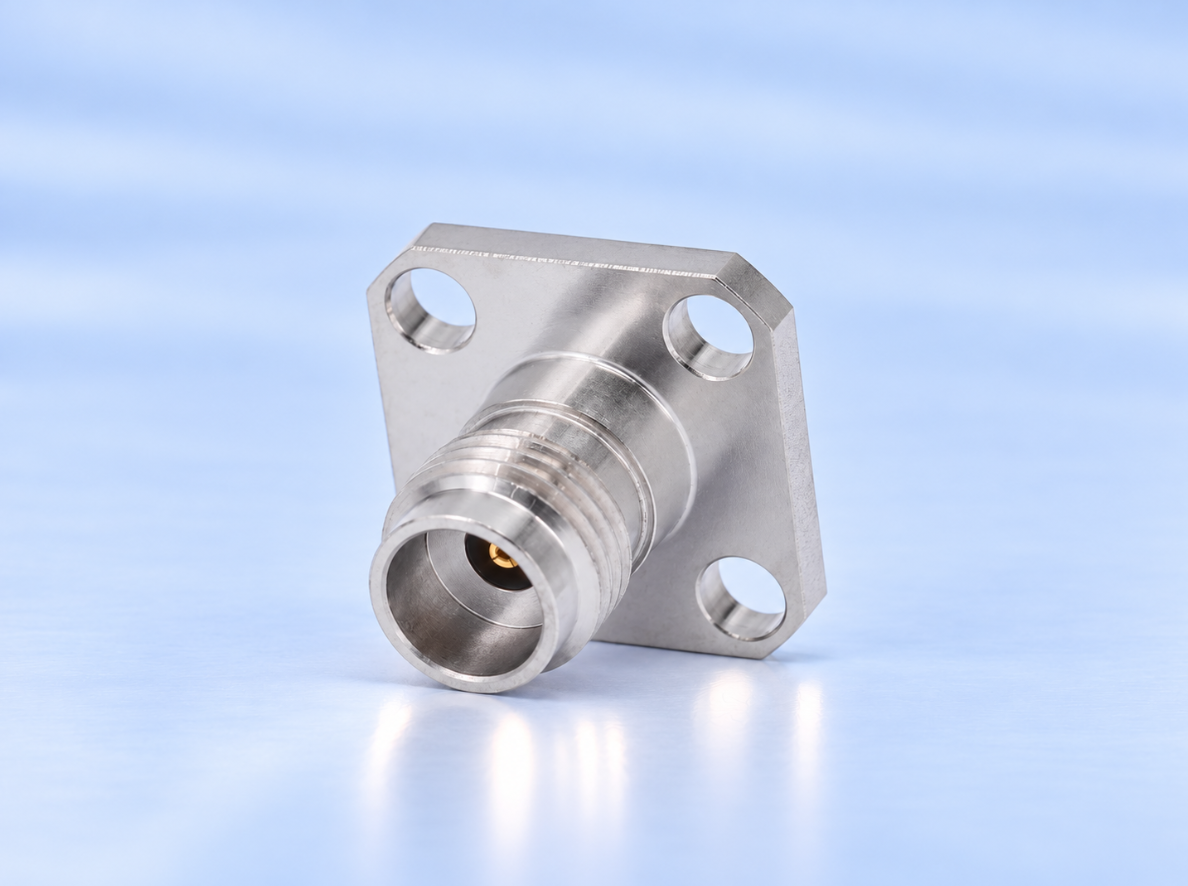

Flange Mount 2.4mm
Precision flange-mount connectors for secure installation in RF and test equipment.
Custom 2.4mm Solutions
Custom configurations for specific mounting, mechanical design and RF performance requirements.
Looking for More 2.4mm Options?
Share your drawings or technical requirements with us. Our team will help you find a suitable standard or custom 2.4mm solution.
2.4mm Technical & Configuration Overview
Technical specifications and customization options for precision 2.4mm connectors. Final performance depends on the selected configuration.
General Specifications
| Interface Type | 2.4mm Precision |
| Nominal Impedance | 50 Ω |
| Coupling Mechanism | Threaded |
| Connector Gender | Male / Female |
| Orientation | Straight / Right-Angle |
| Mounting Options | Cable / PCB / Panel / Flange |
| Termination Options | Solder / PCB / Custom |
Typical frequency range: up to 50 GHz. VSWR and other specifications vary by model. Contact us for details.
Configuration & Customization Options
Cable Interface Options
Compatible flexible and semi-rigid RF cable terminations.
Mounting Styles
Cable, PCB, panel and flange mounting options.
Mechanical Dimensions
Custom dimensions for specific installation requirements.
Materials & Plating
Material and plating options for different applications.
RF Performance Requirements
Options optimized for VSWR and insertion loss.
Project-Specific Customization
Custom 2.4mm designs based on drawings and requirements.
Typical Applications
Telecommunications
Precision RF connections for high-frequency communication and wireless systems.
Test & Measurement
Reliable 50 GHz interconnections for network analyzers and RF test equipment.
Aerospace & Defense
Precision microwave connections for aerospace and defense RF systems.
RF Modules & Microwave
High-frequency connections for microwave modules, RF assemblies and test fixtures.
Why Choose LWMC RF
-
Precision Manufacturing Controlled machining, assembly and inspection for precision RF connectors.
-
RF Performance Verification RF performance testing and verification based on project requirements.
-
Custom Engineering Support Support for custom mounting, mechanical dimensions and RF specifications.
-
Prototype to Production Support from initial prototypes through repeat and volume production.
2.4mm Connectors FAQ
Common questions about 2.4mm connector performance, compatibility, applications and customization.
What is the difference between 2.4mm and 2.92mm connectors?
What frequency range do 2.4mm connectors support?
Are 2.4mm connectors compatible with SMA connectors?
What are the typical applications of 2.4mm connectors?
Can LWMC RF provide custom 2.4mm connectors and cable assemblies?
Discuss Your 2.4mm Requirements
Looking for standard or custom 2.4mm connectors? Share your mounting style, cable or PCB requirements, quantity and target RF performance. Our team will help you find the right solution.
