3.5mm Connectors
Precision 50 Ω Connectors for High-Frequency RF & Microwave Applications
3.5mm connectors are precision 50 Ω RF coaxial connectors designed for high-frequency microwave and test applications. They deliver excellent electrical performance, reliable mating and consistent signal transmission in demanding RF environments.
LWMC RF provides standard and custom 3.5mm connector solutions for cable assemblies, PCB mounting, flange-mount configurations and precision RF systems.
50 Ω Precision Interface
Designed for reliable signal transmission in high-frequency RF and microwave systems.
Up to 34 GHz
Precision performance for microwave testing, instrumentation and RF applications.
Reliable Mating Performance
Precision-engineered interfaces for consistent and repeatable connections.
Flexible Configurations
Cable, PCB and flange-mount options with custom engineering support.

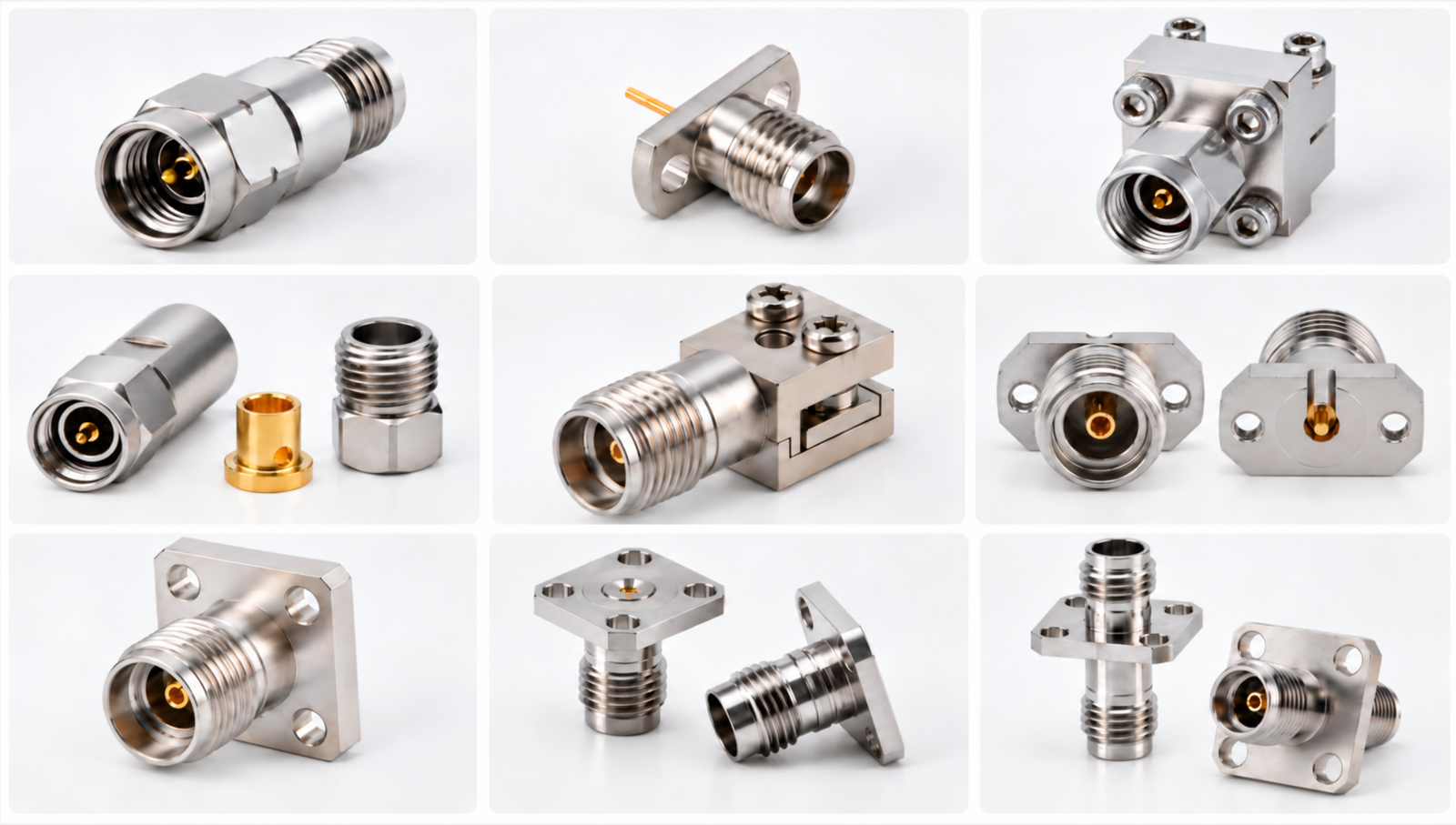

3.5mm Product Options
Precision configurations for cable, PCB, panel mounting and custom microwave applications.
LWMC RF offers standard and custom 3.5mm connector configurations for microwave testing, instrumentation and high-frequency RF systems. Explore our commonly supplied options below.

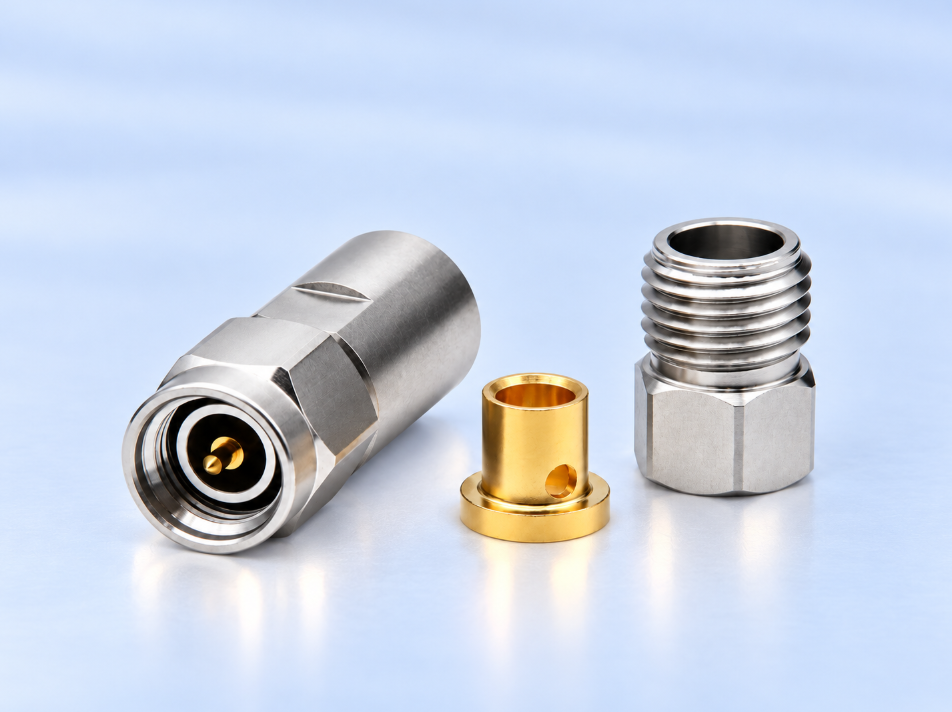

Cable Mount 3.5mm
Straight and right-angle configurations for flexible and semi-rigid RF cable assemblies.

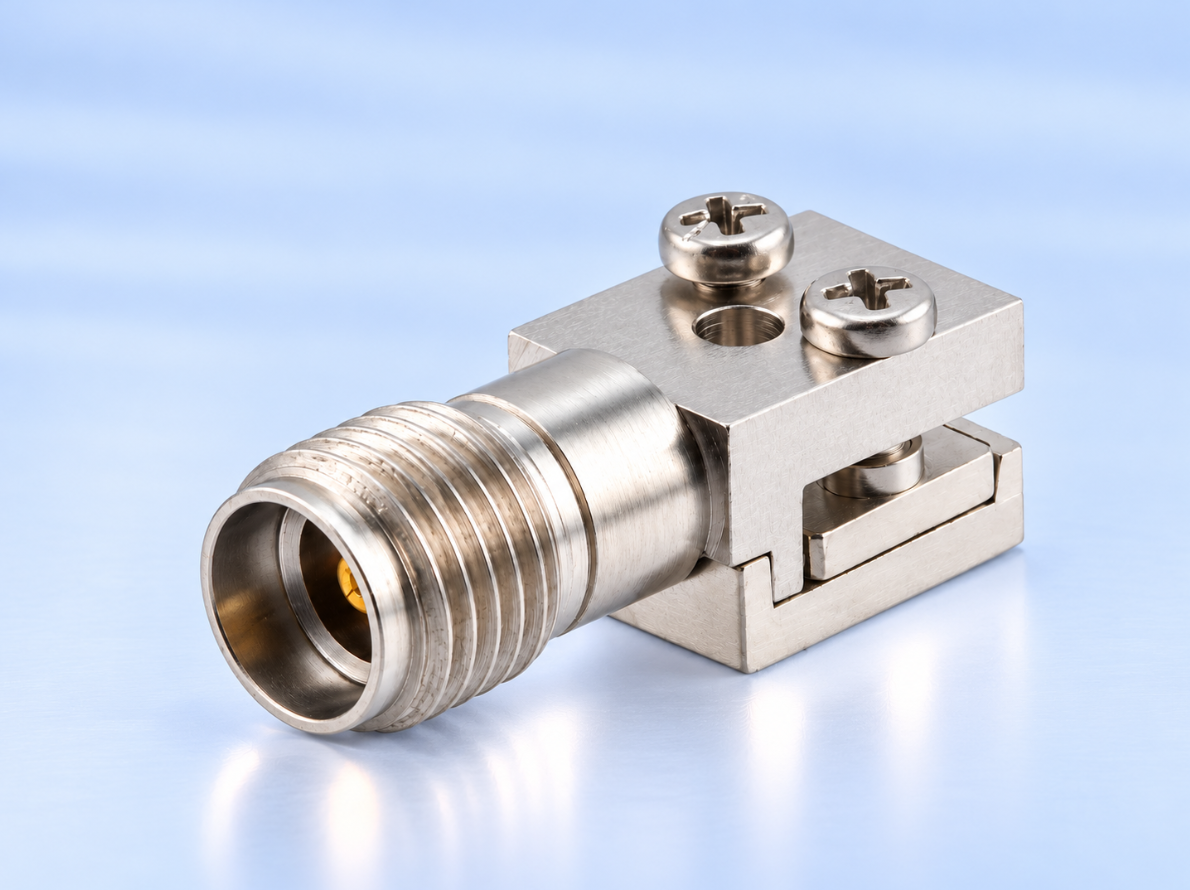

PCB Mount 3.5mm
Precision board-mount connectors for high-frequency PCB integration and test applications.

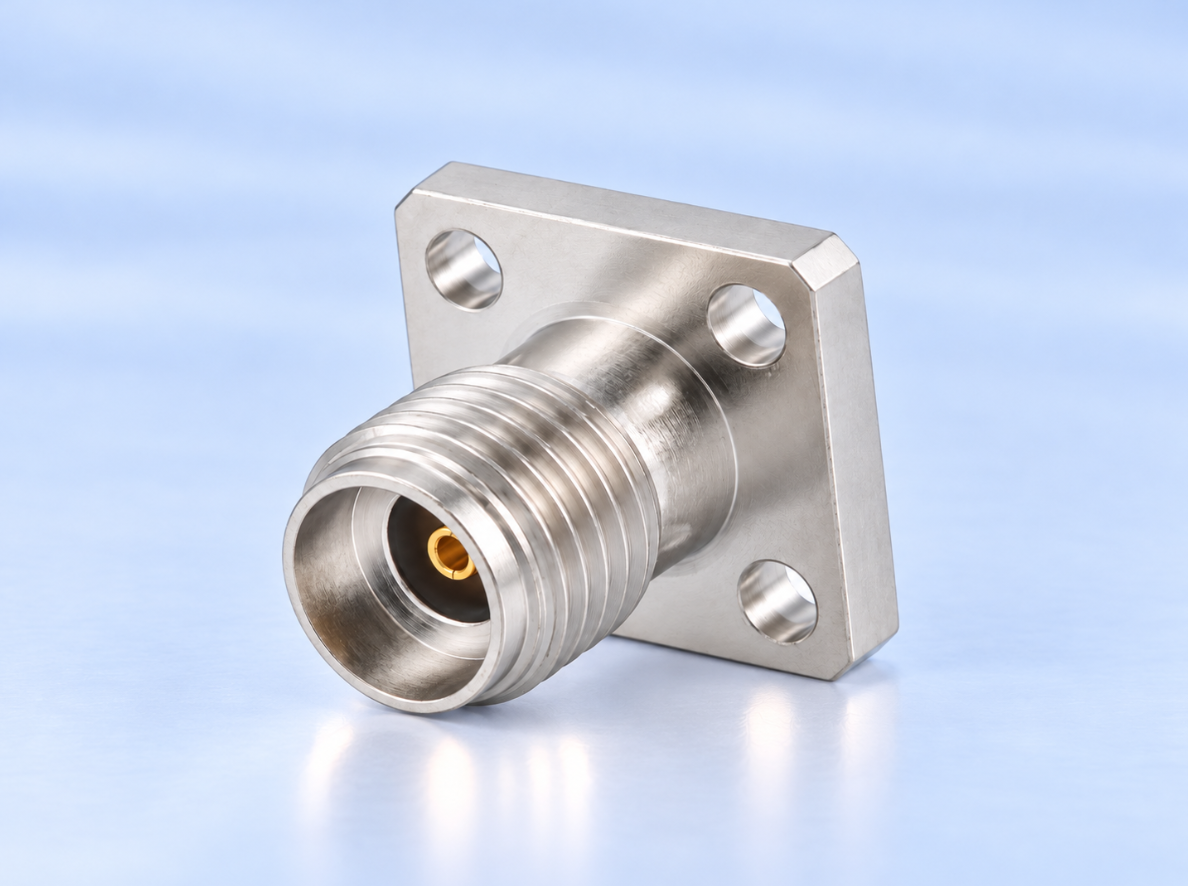

Flange Mount 3.5mm
Secure flange-mount configurations for precision RF assemblies, test fixtures and equipment integration.
Custom 3.5mm Solutions
Custom connector designs for specific mechanical interfaces, mounting and RF performance requirements.
Looking for More 3.5mm Options?
Share your drawings or technical requirements with us. Our team will help you find a suitable standard or custom 3.5mm connector solution.
3.5mm Technical & Configuration Overview
Key specifications and customization options for precision 3.5mm RF connectors. Final performance depends on the selected configuration and application requirements.
General Specifications
| Interface Type | 3.5mm Precision Coaxial |
| Nominal Impedance | 50 Ω |
| Coupling Mechanism | Threaded Coupling |
| Connector Gender | Male / Female |
| Orientation | Straight / Right-Angle |
| Mounting Options | Cable / PCB / Flange |
| Termination Options | Solder / Clamp / Custom |
Frequency range, VSWR, materials and mechanical specifications vary by model. Contact us for detailed 3.5mm connector specifications.
Configuration & Customization Options
Cable Interface Options
Compatible cable interfaces and termination options for flexible and semi-rigid RF cables.
Mounting Configurations
PCB, flange and panel-mount solutions for precision microwave systems and test equipment.
Mechanical Customization
Custom dimensions and mounting features for specific integration requirements.
Materials & Plating
Material and plating options based on application and performance requirements.
RF Performance Optimization
Engineering support for VSWR, insertion loss and high-frequency performance requirements.
Project-Specific Solutions
Custom 3.5mm connector designs and modifications for specific project needs.
Typical Applications
Microwave Test & Measurement
Precision RF connections for network analyzers, test instruments and microwave measurement systems.
High-Frequency Communications
Reliable interconnections for microwave communication equipment and high-frequency RF systems.
RF Research & Development
Precision interfaces for RF laboratories, prototype evaluation and high-frequency circuit development.
Microwave Modules & Assemblies
High-performance connections for microwave modules, RF assemblies and integrated systems.
Why Choose LWMC RF
-
Precision Manufacturing Controlled machining, assembly and inspection processes for consistent connector quality.
-
RF Performance Verification Electrical performance testing and verification based on product specifications and project requirements.
-
Custom Engineering Support Support for mechanical design, mounting configurations and application-specific RF requirements.
-
Prototype to Production Flexible support from initial prototypes and sample evaluation to repeat and volume orders.
3.5mm Connectors FAQ
Common questions about 3.5mm connector performance, compatibility, applications and customization.
Are 3.5mm connectors compatible with SMA and 2.92mm connectors?
What frequency range do 3.5mm connectors support?
What are the typical applications of 3.5mm connectors?
What mounting options are available for 3.5mm connectors?
Can LWMC RF provide custom 3.5mm connectors and cable assemblies?
Discuss Your 3.5mm Requirements
Looking for standard or custom 3.5mm connectors? Share your connector type, mounting configuration, cable or PCB requirements, quantity and target RF performance. Our engineering team will help you evaluate a suitable solution for your project.
