SMP Connectors
Compact 50 Ω SMP Connectors for High-Density RF Applications
SMP connectors are compact 50 Ω push-on coaxial connectors designed for high-frequency and high-density RF applications. Their small size and blind-mate capability make them suitable for RF modules, PCB assemblies, communication and test systems.
LWMC RF supplies standard and custom SMP connector solutions for different mounting, interface and RF performance requirements.
50 Ω Interface
Designed for stable signal transmission in high-frequency RF systems.
Push-On Coupling
Quick and secure connections without threaded coupling.
Blind-Mate Capability
Supports reliable connections in compact and high-density assemblies.
Flexible Configurations
Options for PCB mounting, cable connections and modular RF systems.

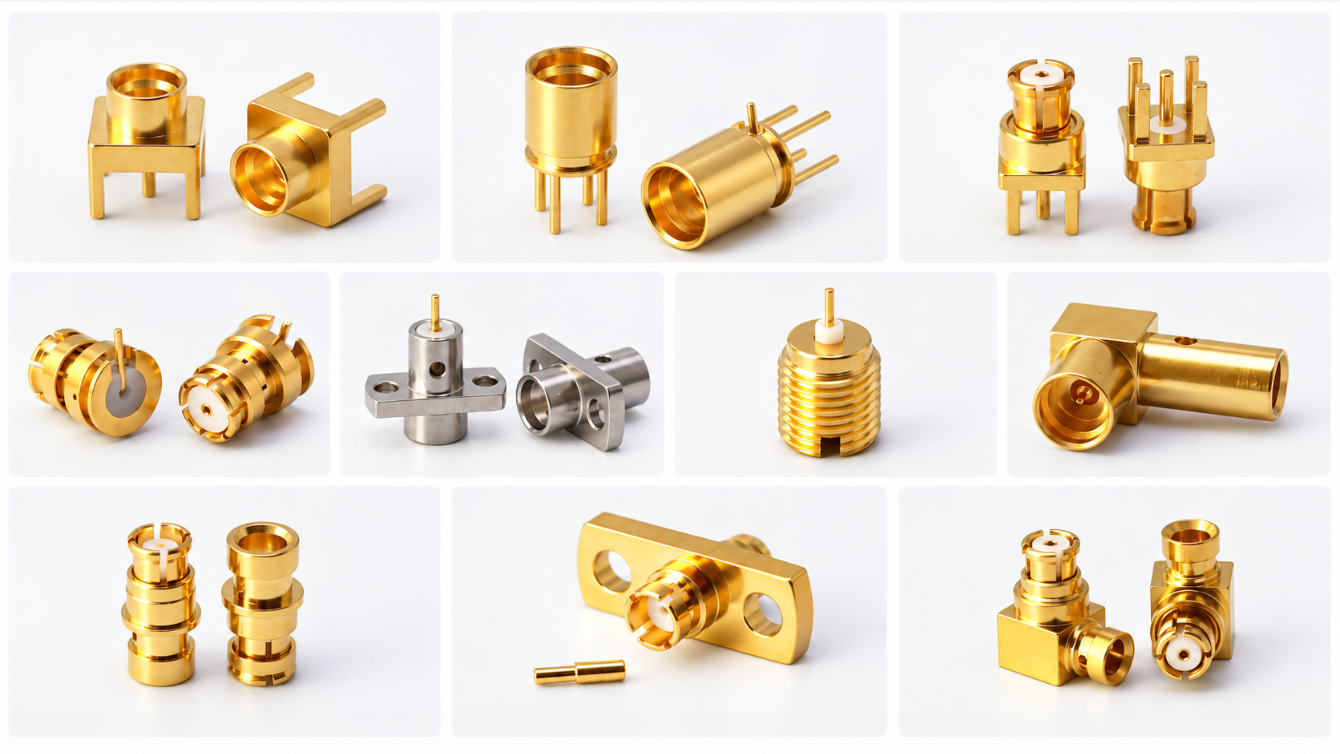

SMP Product Options
Compact configurations for cable, PCB, panel and custom RF applications.
LWMC RF offers standard and custom SMP connector configurations for high-density RF systems. Explore our commonly supplied options below.

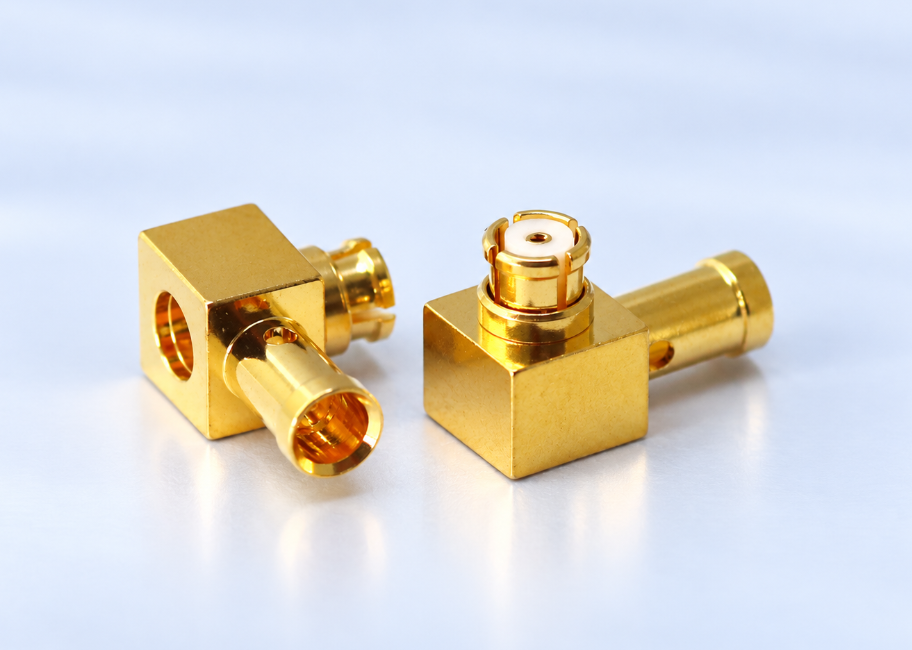

Cable Mount SMP
Straight and right-angle configurations for flexible and semi-rigid RF cable assemblies.

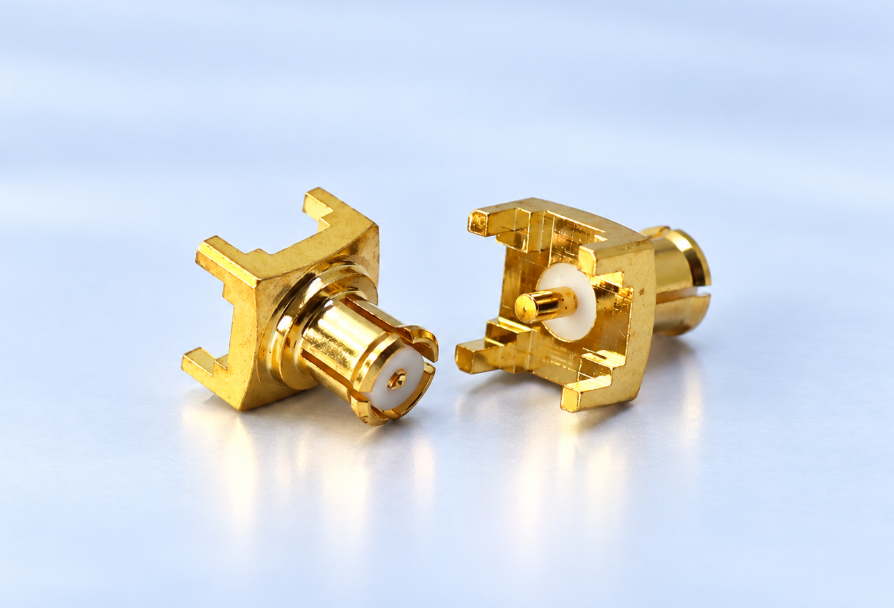

PCB Mount SMP
Compact board-mount configurations for high-density RF modules and PCB assemblies.

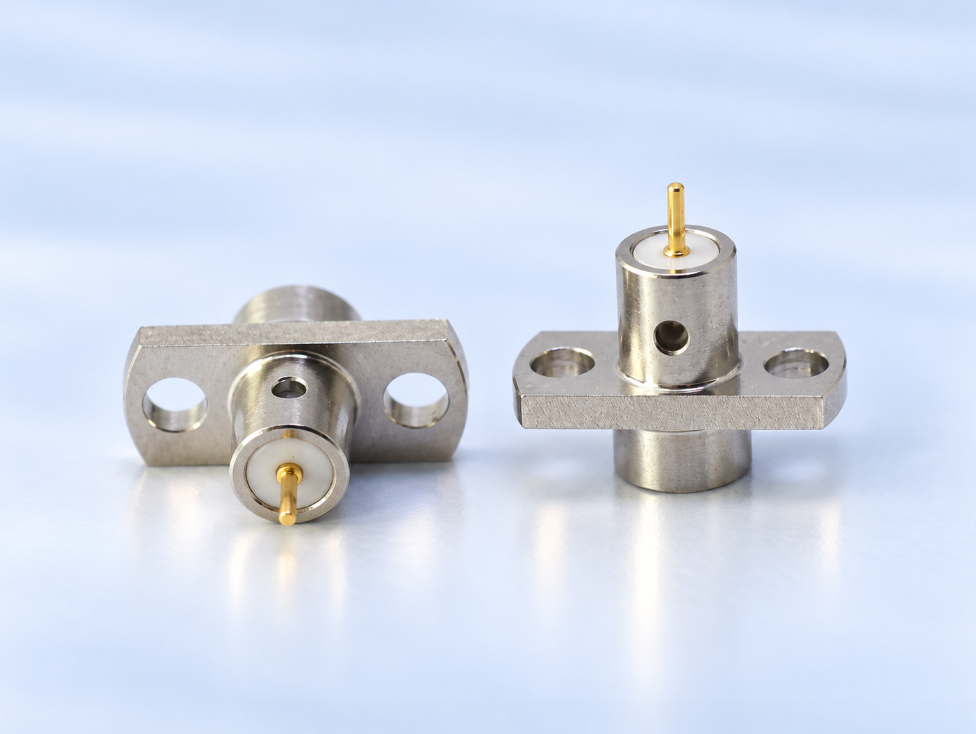

Panel & Flange Mount SMP
Compact flange-mount configurations for secure installation in RF modules and equipment.
Custom SMP Solutions
Custom configurations for specific mounting, mechanical and RF performance requirements.
Looking for More SMP Options?
Share your drawings or technical requirements with us. Our team will help you find a suitable standard or custom SMP solution.
SMP Technical & Configuration Overview
Common SMP characteristics and configuration options for high-frequency and high-density RF applications. Final specifications depend on the selected configuration and project requirements.
General Specifications
| Interface Type | SMP |
| Nominal Impedance | 50 Ω |
| Coupling Mechanism | Push-On / Snap-On |
| Connector Gender | Male / Female |
| Orientation | Straight / Right-Angle |
| Mounting Options | Cable / PCB / Panel / Flange |
| Termination Options | Solder / PCB / Custom |
Frequency range, VSWR, engagement force and other electrical specifications vary by configuration. Contact us for model-specific specifications.
Configuration & Customization Options
Cable Interface Options
Support for different compatible RF cable types and termination methods.
Mounting Styles
Cable, PCB, panel, flange and project-specific mounting options.
Mechanical Dimensions
Mounting dimensions and mechanical features can be adjusted for specific installation requirements.
Materials & Plating
Material and plating options based on application and performance requirements.
RF Performance Requirements
RF performance can be selected or optimized based on project requirements.
Project-Specific Customization
Support for project-specific SMP connector designs and modifications.
Typical Applications
Telecommunications
Compact RF connections for communication modules and wireless systems.
Test & Measurement
High-density RF connections for test equipment and measurement systems.
Aerospace & Defense
Compact RF interconnections for aerospace and defense systems.
RF Modules & Microwave
Blind-mate connections for RF modules and high-density microwave assemblies.
Why Choose LWMC RF
-
Precision Manufacturing Controlled machining, assembly and inspection processes.
-
RF Performance Verification Performance verification based on project requirements.
-
Custom Engineering Support Support for mechanical dimensions, mounting styles and RF requirements.
-
Prototype to Production Support from initial samples through repeat and volume orders.
SMP Connectors FAQ
Common questions about SMP connector performance, blind-mate applications and customization.
What is the difference between SMP and SMA connectors?
What frequency range can SMP connectors support?
Are SMP connectors suitable for blind-mate applications?
What is the difference between Full Detent, Limited Detent and Smooth Bore SMP connectors?
Can LWMC RF provide custom SMP connectors and cable assemblies?
Discuss Your SMP Requirements
Looking for a standard or custom SMP connector? Share your connector type, mounting style, cable or PCB requirements, quantity and target RF performance. Our team can help evaluate a suitable solution for your project.
