MCX Connectors

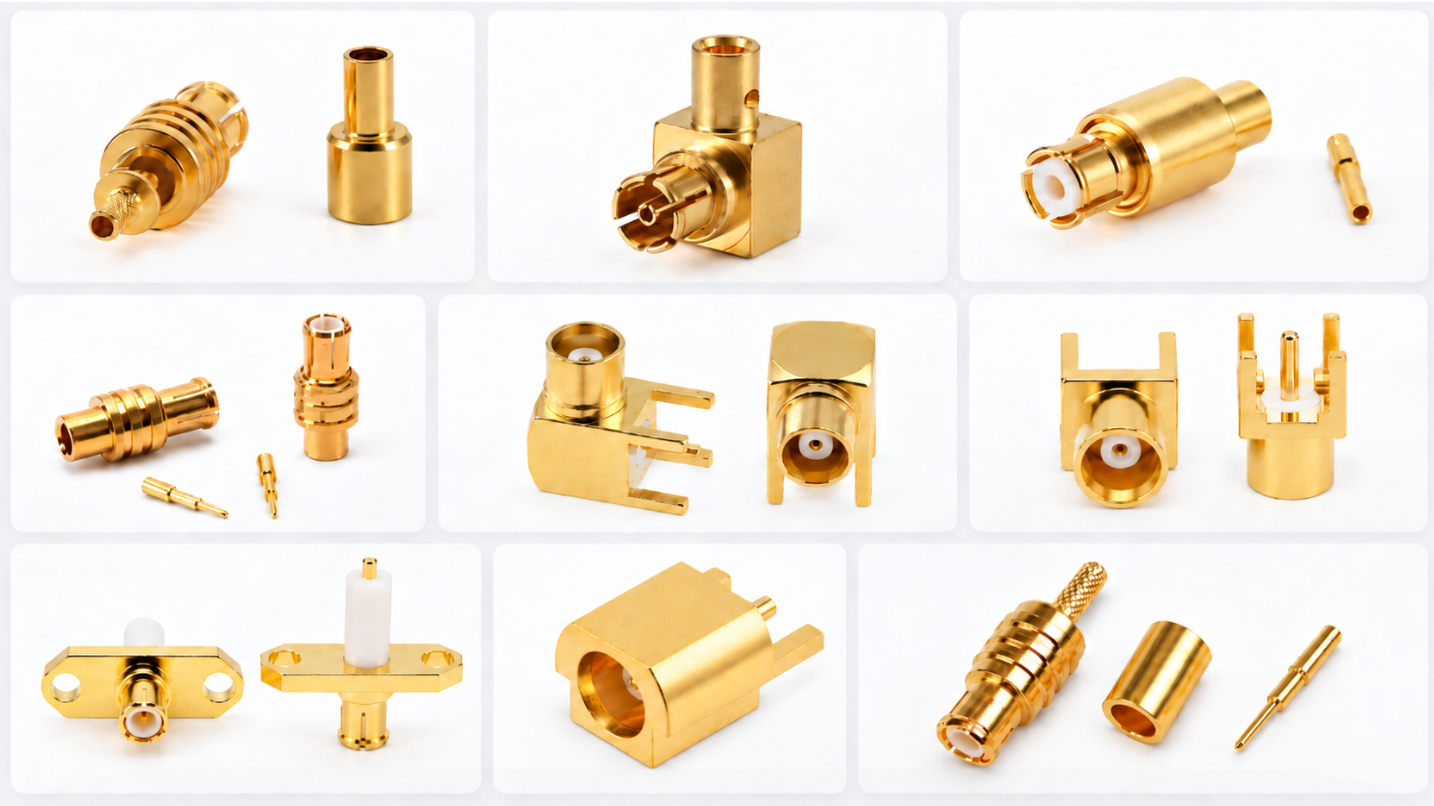

Compact MCX Connectors for Miniature RF Applications
MCX connectors are miniature RF coaxial connectors designed for compact electronic applications requiring reliable signal transmission and easy installation. Their snap-on coupling design provides quick and secure connections in space-limited RF systems.
LWMC RF provides standard and custom MCX connector solutions for cable assemblies, PCB mounting, and space-limited RF systems.
Miniature Design
Compact structure for high-density RF applications and space-constrained equipment.
Snap-On Connection
Quick and reliable mating design for efficient installation and maintenance.
Reliable RF Performance
Stable electrical performance for wireless communication and electronic systems.
Flexible Configurations
Available in cable, PCB mount, and customized MCX connector solutions.
MCX Product Options
Flexible configurations for cable, PCB mounting and RF systems.
LWMC RF offers standard and custom MCX connector solutions for communication, wireless modules, instrumentation and compact RF systems.

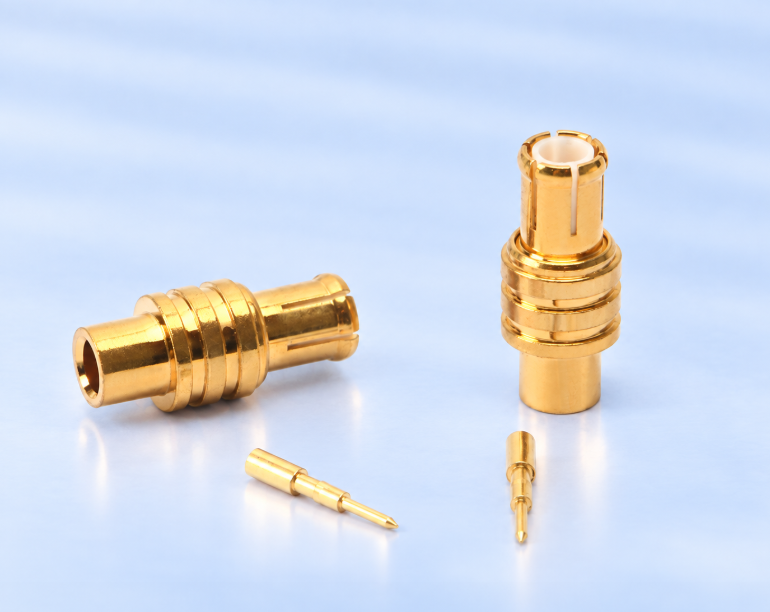

Cable Mount MCX
Straight and right-angle configurations for flexible and semi-flexible RF cable assemblies.

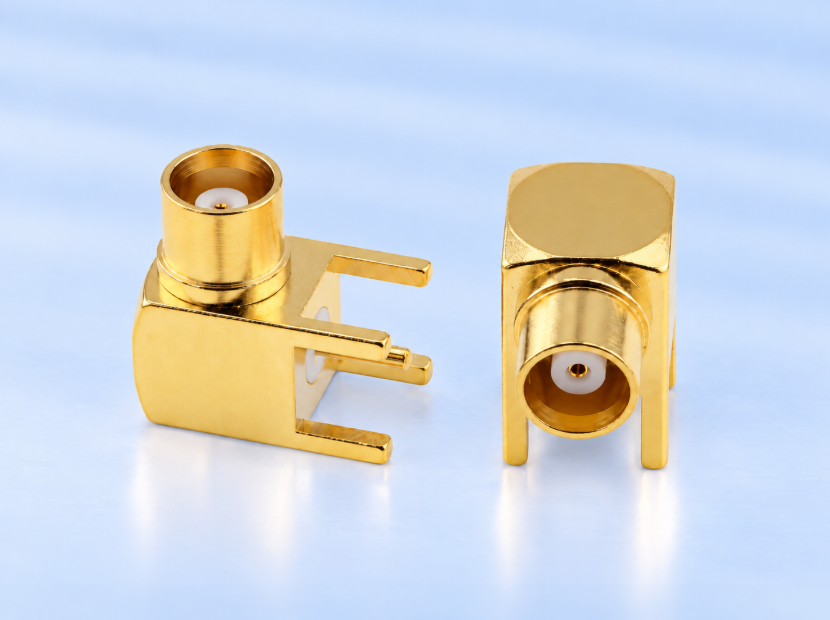

PCB Mount MCX
Board-mount configurations for RF modules, PCB assemblies and compact electronic equipment.

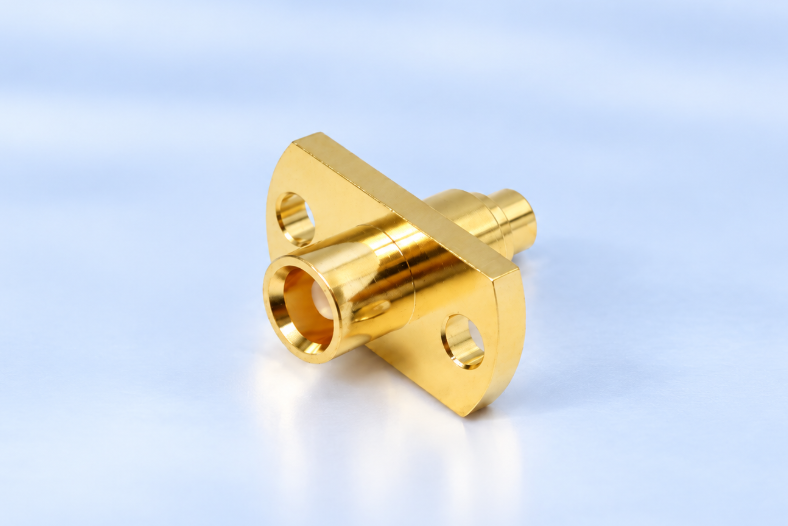

Panel & Bulkhead MCX
Secure mounting options for panels, enclosures and RF equipment integration.
Custom MCX Solutions
Custom configurations for specific mounting, mechanical and RF performance requirements.
Looking for More MCX Options?
Share your drawings or technical requirements with us. Our team will help you find a suitable standard or custom MCX solution.
MCX Technical & Configuration Overview
Common MCX characteristics and configuration options for compact RF connections. Final specifications depend on the selected configuration and project requirements.
General Specifications
| Interface Type | MCX |
| Coupling Mechanism | Snap-On Coupling |
| Connector Gender | Male / Female |
| Orientation | Straight / Right-Angle |
| Mounting Options | Cable / PCB / Panel / Bulkhead |
| Termination Options | Solder / Crimp / Custom |
Frequency range, VSWR, mechanical dimensions and other electrical specifications vary by configuration. Contact us for model-specific MCX specifications.
Configuration & Customization Options
Cable Interface Options
Support for different compatible RF cable types and termination methods.
Mounting Options
Cable, PCB and panel mounting options for different compact RF applications.
Mechanical Dimensions
Custom dimensions and mechanical features available for specific application requirements.
Materials & Plating
Material and plating options based on application and performance requirements.
Project-Specific Customization
Support for customized MCX connector designs, modifications and application requirements.
Typical Applications
Telecommunications
Reliable RF connections for wireless communication systems, network equipment and compact RF modules.
Test & Measurement
Stable RF connections for test equipment, instrumentation and measurement systems.
Electronic Equipment
Compact RF interconnect solutions for electronic devices and space-limited systems.
RF Systems & Modules
Secure RF connections for wireless modules, assemblies and integrated RF systems.
Why Choose LWMC RF
-
Precision Manufacturing Controlled machining, assembly and inspection processes for consistent MCX connector quality.
-
RF Performance Verification Performance verification based on project requirements and application needs.
-
Custom Engineering Support Support for mechanical dimensions, mounting styles and RF requirements.
-
Prototype to Production Support from initial samples through repeat and volume orders.
MCX Connectors FAQ
Common questions about MCX connector performance, applications, configurations and customization.
What is the difference between MCX and SMA connectors?
What applications are MCX connectors used for?
What mounting options are available for MCX connectors?
What cable types are compatible with MCX connectors?
Can LWMC RF provide custom MCX connectors and cable assemblies?
Discuss Your MCX Requirements
Looking for a standard or custom MCX connector solution? Share your connector type, mounting style, cable or PCB requirements, quantity and target RF performance. Our team can help evaluate a suitable solution for your project.
