SMA Connectors

Compact 50 Ω SMA Connectors for RF & Microwave Applications

SMA connectors are compact 50 Ω threaded coaxial connectors designed for microwave and high-frequency RF systems. Their secure coupling and flexible mounting options make them suitable for cable assemblies, PCB connections, test equipment and communication systems.

LWMC RF supplies standard and custom SMA configurations for different mounting, cable and RF performance requirements.

Request a Quote
Group of SMA Connectors

50 Ω Interface

Common impedance for RF and microwave systems.

Threaded Coupling

Secure screw-on connection for stable mechanical engagement.

Flexible Configurations

Options for cable, PCB, panel, bulkhead and right-angle mounting.

Wide RF Applications

Used across communication, test, aerospace and industrial RF systems.

SMA Product Options

Flexible configurations for cable, PCB, panel and custom RF applications.

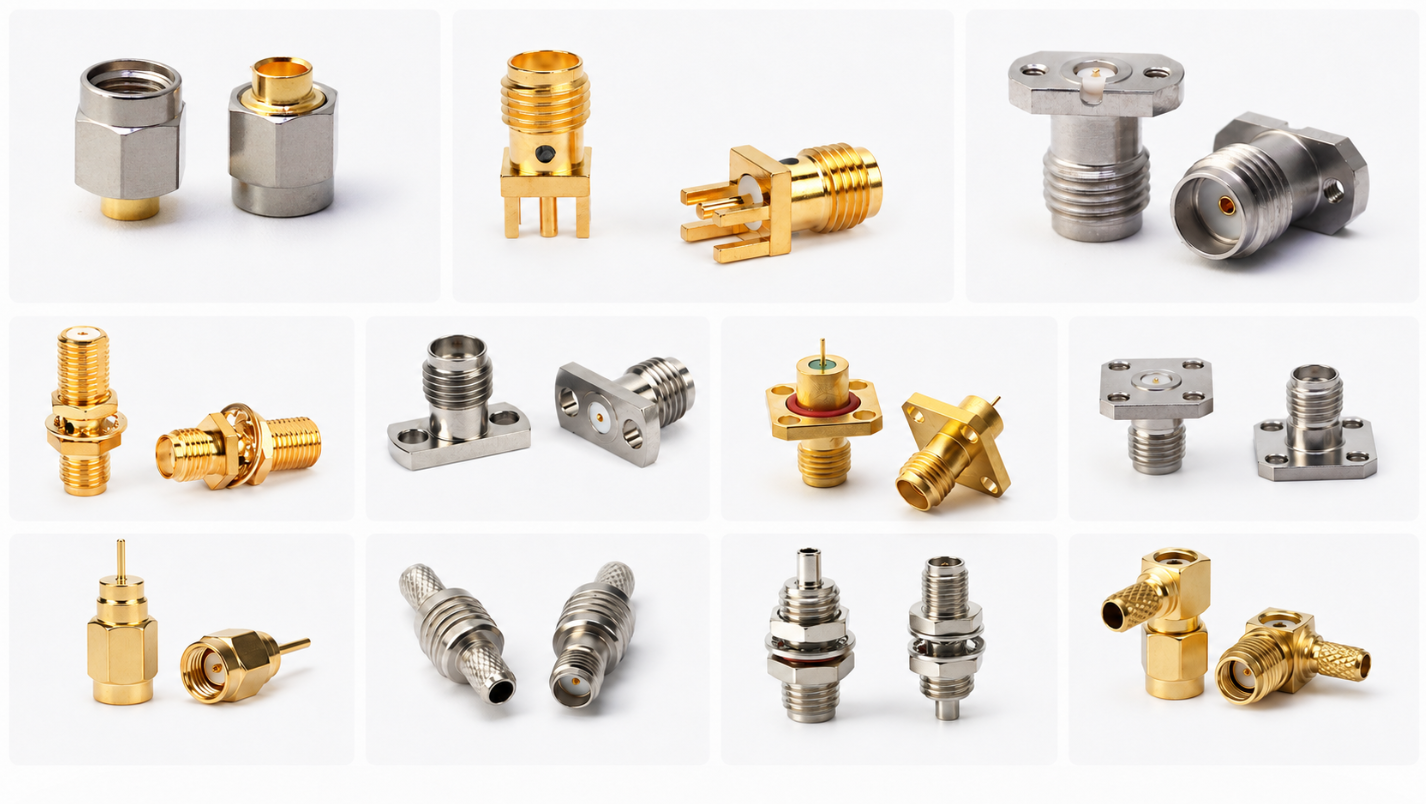

LWMC RF offers a wide range of standard and custom SMA connector configurations. Below are some of our commonly supplied options.

Cable Mount SMA

Cable Mount SMA

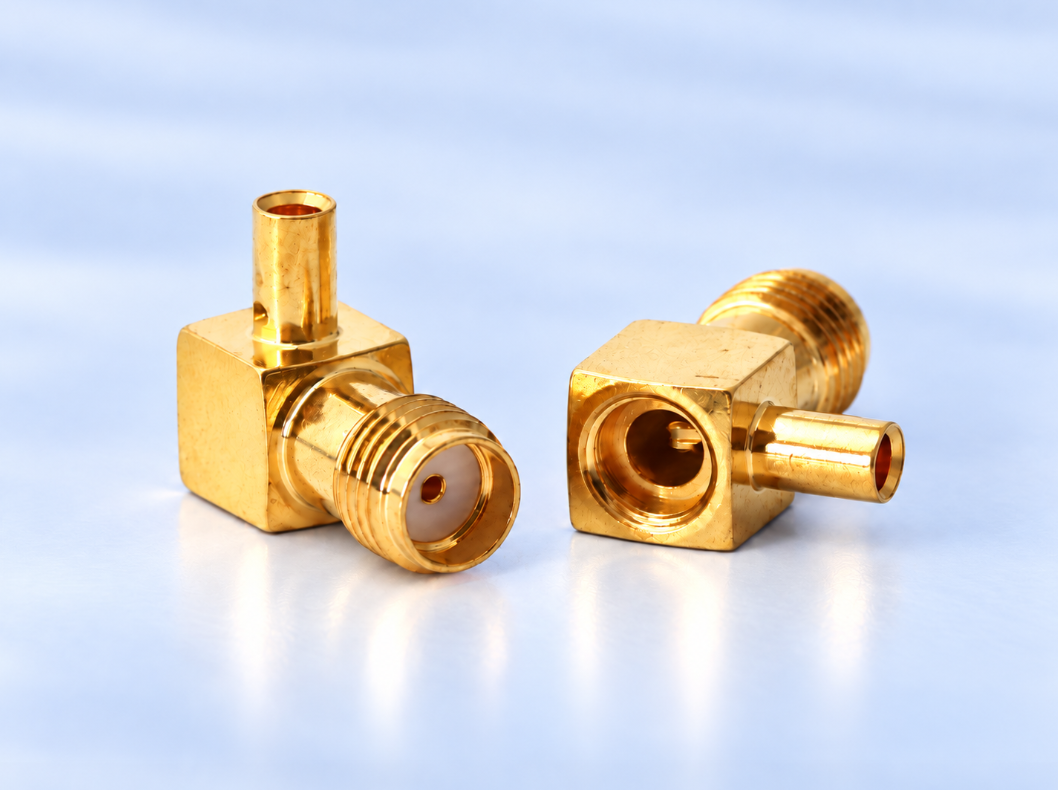

Straight and right-angle configurations for flexible, semi-rigid and other RF cable applications.

Straight Right-Angle Crimp Solder
PCB and Edge Mount SMA

PCB & Edge Mount SMA

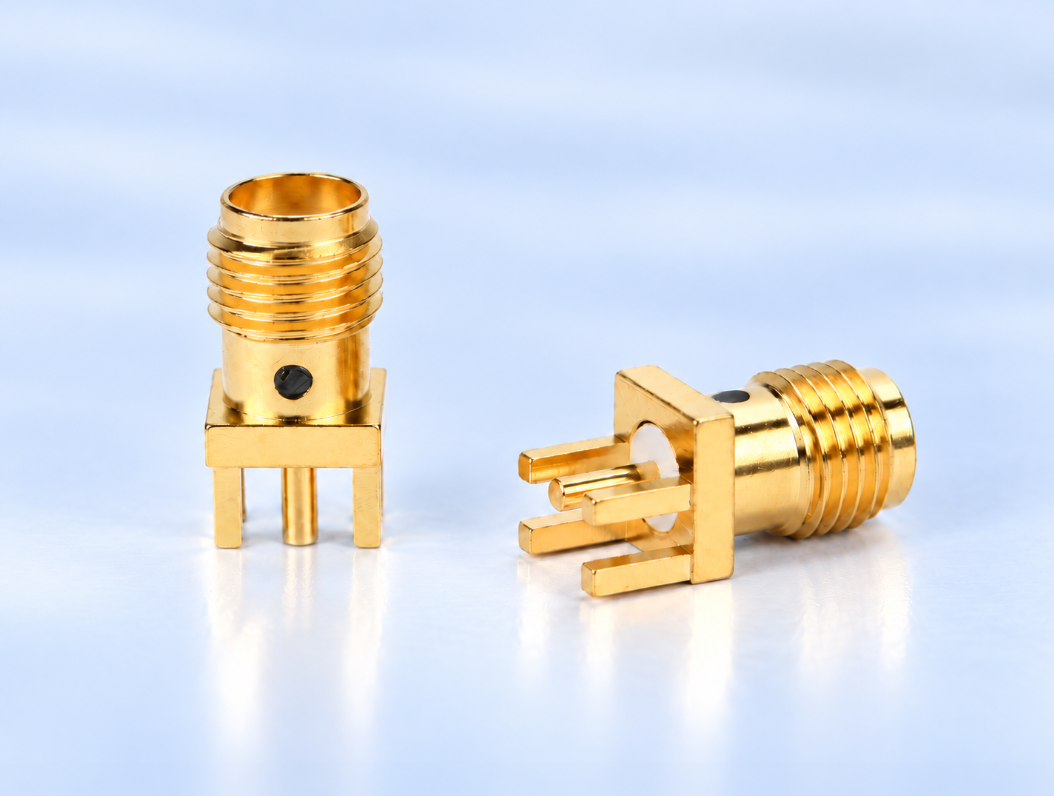

Board-mount and end-launch configurations for RF PCB and coaxial transitions.

PCB Edge Mount End Launch
Panel and Bulkhead SMA

Panel & Bulkhead SMA

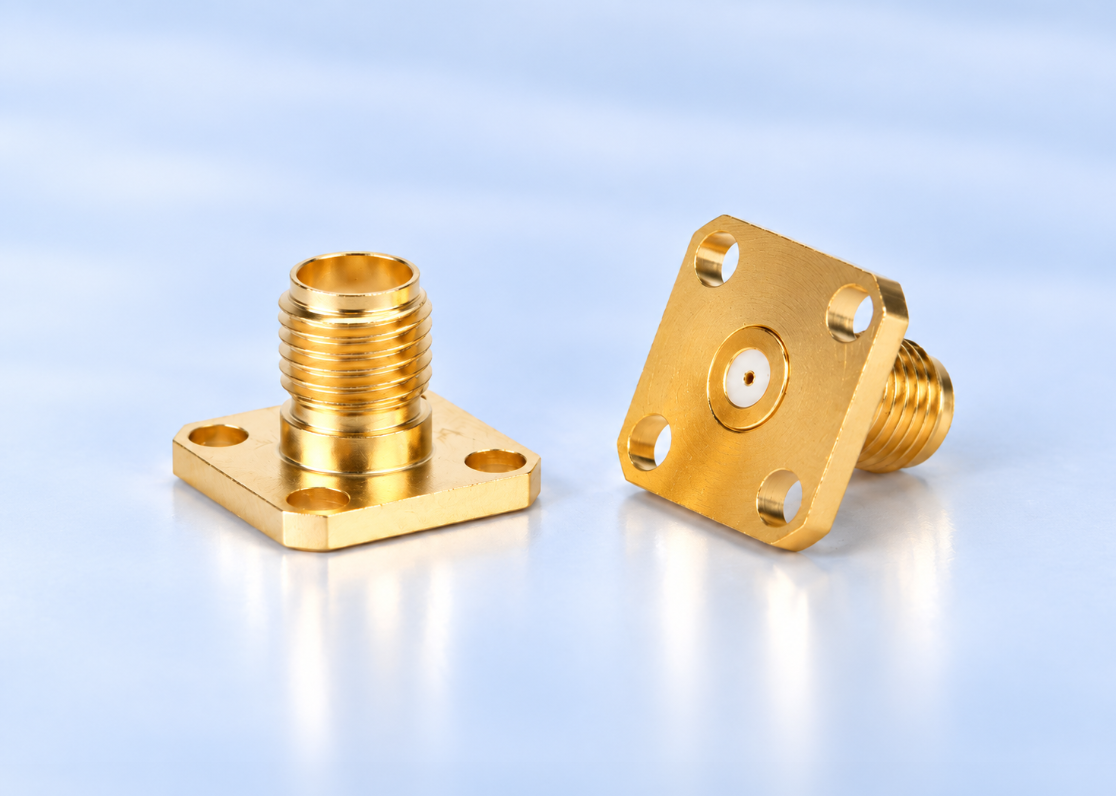

Panel, bulkhead and enclosure-mount configurations for equipment and RF systems.

Panel Bulkhead Flange
Custom SMA Solutions

Custom SMA Solutions

Project-specific configurations for mechanical dimensions, mounting, cable interfaces and RF requirements.

Custom OEM Engineering

Looking for More SMA Options?

Our SMA brochure features selected configurations for reference. For additional standard or custom options, send us your requirements and our team will help you find a suitable solution.

Send Your Requirements → Download SMA Brochure →
Secure Threaded Interface
Multiple Mounting Styles
Cable & PCB Configurations
Custom Engineering Support

SMA Technical & Configuration Overview

Common SMA characteristics and configuration options for RF and microwave applications. Final specifications depend on the selected configuration and project requirements.

General Specifications

Interface Type SMA
Nominal Impedance 50 Ω
Coupling Mechanism Threaded
Connector Gender Plug / Jack
Orientation Straight / Right-Angle
Mounting Options Cable / PCB / Panel / Bulkhead
Termination Options Crimp / Solder / PCB / Custom

Frequency range, VSWR, materials and other electrical specifications vary by configuration. Contact us for model-specific specifications.

Configuration & Customization Options

Cable Interface Options

Support for different RF cable types and termination methods.

Mounting Styles

Cable, PCB, panel, bulkhead and project-specific mounting.

Mechanical Dimensions

Mounting dimensions and mechanical features can be adjusted for specific installation requirements.

Materials & Plating

Options can be selected based on application and performance requirements.

RF Performance Requirements

RF performance can be selected or optimized based on project requirements.

Project-Specific Customization

Support for project-specific connector designs and modifications.

Typical Applications

Telecommunications

Base stations, antennas and wireless communication systems.

Test & Measurement

RF test equipment, network analyzers and laboratory systems.

Aerospace & Defense

RF interconnections for demanding aerospace and defense equipment.

Industrial & Microwave

Amplifiers, filters, RF modules and industrial electronic equipment.

Why Choose LWMC RF

LWMC RF Manufacturing
  • Precision Manufacturing Controlled machining, assembly and inspection processes.
  • RF Performance Verification Performance verification based on project requirements.
  • Custom Engineering Support Support for mechanical dimensions, mounting styles and RF requirements.
  • Prototype to Production Support from initial samples through repeat and volume orders.
Discuss Your SMA Project

SMA Connectors FAQ

Common questions about SMA connector selection, configuration and customization.

What is the difference between standard SMA and RP-SMA?
Standard SMA and RP-SMA use different center contact arrangements. A standard SMA male has a center pin, while an RP-SMA male has a center receptacle. They are not normally interchangeable and are used in different applications.
What frequency range can SMA connectors support?
The supported frequency range depends on the connector design, materials and cable type. Many SMA connectors are used for microwave applications, but the exact limit should be confirmed for the selected configuration.
Can SMA connectors be used with 3.5 mm or 2.92 mm interfaces?
Some SMA, 3.5 mm and 2.92 mm interfaces may be mechanically compatible, but their electrical performance and contact geometry differ. For high-frequency applications, the correct interface or a suitable adapter should be selected.
What materials and plating options are available for SMA connectors?
Common body materials include brass and stainless steel. Finish options may include gold plating, nickel plating, passivated stainless steel and other surface treatments depending on the mechanical, environmental and RF requirements.
Can LWMC RF supply custom SMA cable assemblies?
Yes. LWMC RF supports custom SMA cable assemblies with different cable types, lengths and RF performance requirements. Share your project details for evaluation.

Discuss Your SMA Requirements

Looking for a standard or custom SMA connector? Share your connector type, mounting style, cable or PCB requirement, quantity and target RF performance. Our team can help evaluate a suitable solution for your project.
