N-Type Connectors
Rugged 50 Ω N-Type Connectors for RF & Communication Systems
N-Type connectors are durable 50 Ω threaded coaxial connectors designed for reliable RF transmission in communication, antenna, test and industrial systems. Their secure coupling and robust mechanical structure make them suitable for demanding indoor and outdoor applications.
LWMC RF supplies standard and custom N-Type configurations for different cable interfaces, mounting styles and RF performance requirements.
50 Ω Interface
Common impedance for RF communication and coaxial systems.
Threaded Coupling
Secure screw-on connection for stable mechanical engagement.
Rugged Construction
Designed for reliable use in demanding RF environments.
Flexible Configurations
Options for cable, panel, bulkhead, flange and adapter designs.

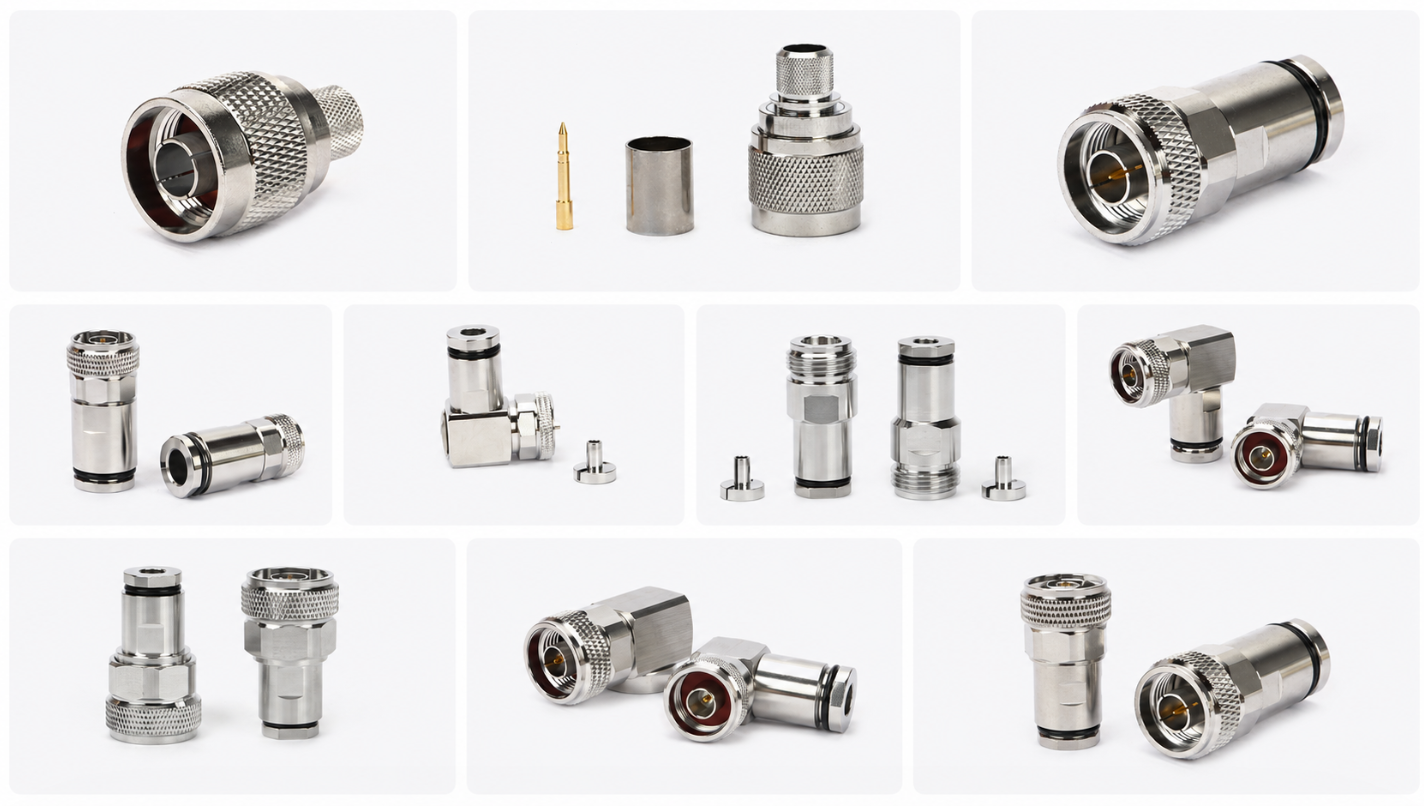

N-Type Product Options
Flexible configurations for cable, PCB, panel and custom RF applications.
LWMC RF supplies standard and custom N-Type configurations for cable assemblies, antenna systems, outdoor applications and RF equipment.

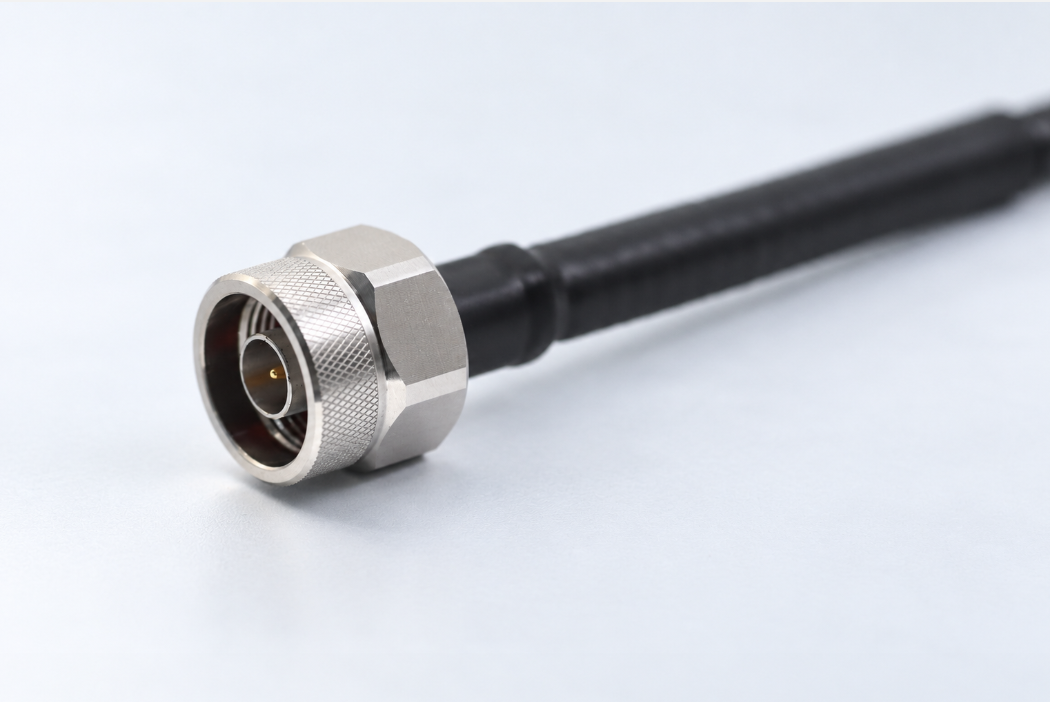

Cable Mount N-Type
Straight and right-angle configurations for flexible, semi-rigid and other RF cable applications.
PCB & Edge Mount N-Type
Board-mount and end-launch configurations for RF PCB and coaxial transitions.

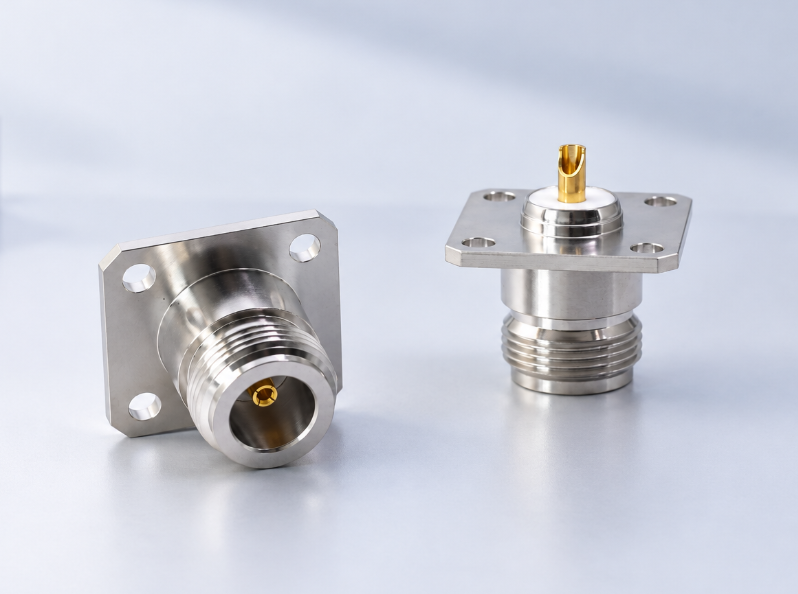

Panel & Bulkhead N-Type
Panel, bulkhead and enclosure-mount configurations for RF equipment and systems.
Custom N-Type Solutions
Project-specific configurations for mechanical dimensions, mounting, cable interfaces and RF requirements.
Looking for More N-Type Options?
We offer standard and custom N-Type configurations for different cable types, mounting styles and RF requirements. For specific interfaces, structures or performance targets, our team can help recommend a suitable solution.
N-Type Technical & Configuration Overview
Common N-Type characteristics and configuration options for RF, communications and industrial applications. Final specifications depend on the selected configuration and project requirements.
General Specifications
| Interface Type | N-Type |
|---|---|
| Nominal Impedance | 50 Ω |
| Coupling Mechanism | Threaded |
| Connector Gender | Plug / Jack |
| Orientation | Straight / Right-Angle |
| Mounting Options | Cable / Panel / Bulkhead / Flange |
| Termination Options | Crimp / Solder / Clamp / Custom |
* Frequency range, VSWR, materials and other electrical specifications vary by configuration. Contact us for model-specific specifications.
Configuration & Customization Options
Cable Interface Options
Support for different RF cable types and termination methods.
Mounting Styles
Cable, panel, bulkhead, flange and project-specific mounting.
Mechanical Dimensions
Mounting dimensions and mechanical features can be adjusted for specific installation requirements.
Materials & Plating
Options can be selected based on application and performance requirements.
RF Performance Requirements
RF performance can be selected or optimized based on project requirements.
Project-Specific Customization
Support for customer drawings, samples and modified connector designs.
Typical Applications
Telecommunications
Base stations, antennas and wireless communication systems.
Test & Measurement
RF test equipment, network analyzers and laboratory systems.
Aerospace & Defense
RF interconnections for demanding aerospace and defense equipment.
Industrial & Microwave
Amplifiers, filters, RF modules and industrial electronic equipment.
Why Choose LWMC RF
-
Precision Manufacturing Controlled machining, assembly and inspection processes.
-
RF Performance Verification Performance verification based on project requirements.
-
Custom Engineering Support Support for mechanical dimensions, mounting styles and RF requirements.
-
Prototype to Production Support from initial samples through repeat and volume orders.
